Rubber wiper inserts, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install metal strips into upper grooves of new rubber insert.

NOTE: Notches in metal strips must face rubber and engage rubber lugs in groove.

Slide rubber insert into lower clips of wiper blade.
Squeeze metal strips at open end of rubber insert using pliers.
Install rubber insert into clip so that clip engages rubber retaining slot (arrow).

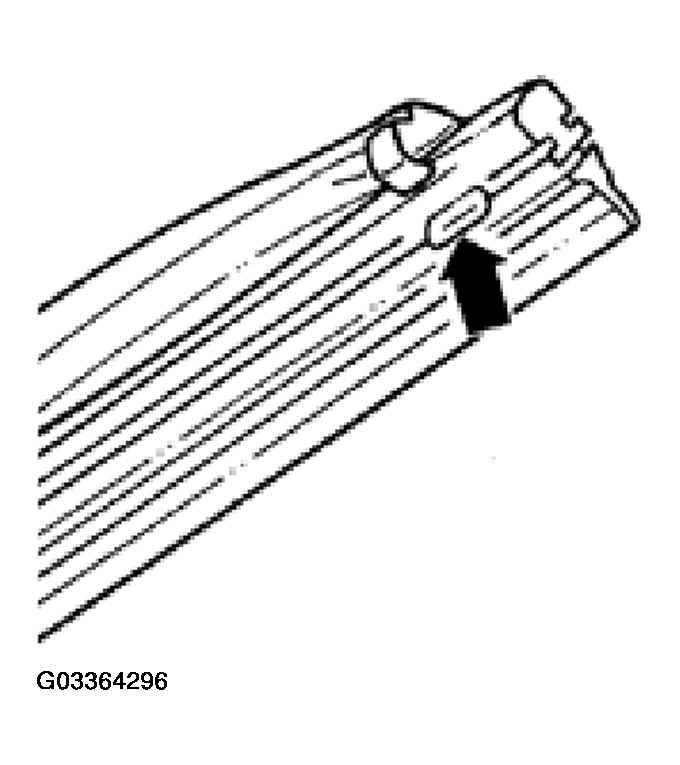

Fig 1: Installing Rubber Insert Into Clip
Courtesy of VOLKSWAGEN OF AMERICA, INC.
