Speakers, layout and dimensions: Notes

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

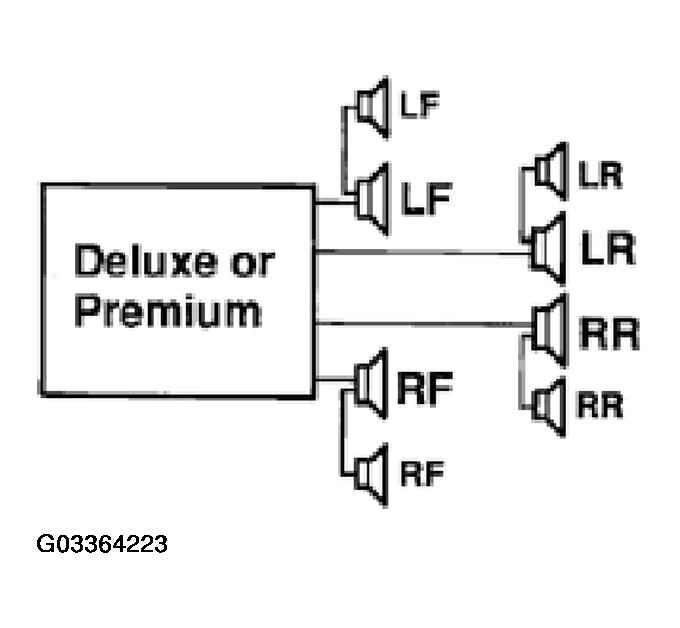

Fig 1: Identifying Speakers, Layout And Dimensions (Front)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Front and rear passive (non-amplified) speakers are used.
Speaker layout indicated here also applies to "Sound System"
