Multi-pin connector I, part 3, blue

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to items in Fig 1 .
  1. 13 - CD-changer, DATA IN
  2. 14 - CD-changer, DATA OUT
  3. 15 - CD-changer, CLOCK
  4. 16 - CD-changer, power supply (+), terminal 30
  5. 17 - CD-changer, control signal
  6. 18 - CD-changer, left and right port, Ground (GND)
  7. 19 - CD-changer, left port, CD/L
  8. 20 - CD-changer, right port, CD/R

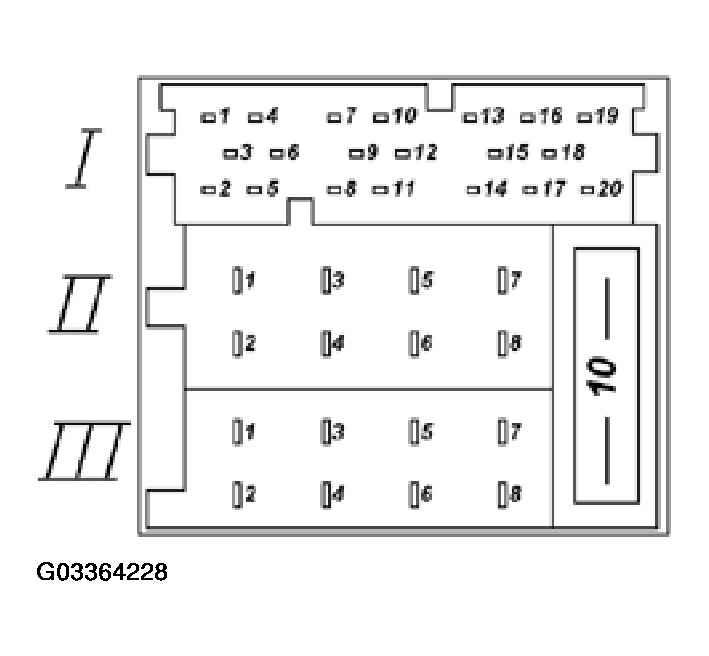

Fig 1: Identifying Sound System Multi-Pin Connector I, Part 3, Blue
G03364228Courtesy of VOLKSWAGEN OF AMERICA, INC.
