Multi-pin connector I, part 1, yellow

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1 .

1 - Line out left rear, LR
2 - Line out right rear, RR
3 - Ground (GND)
4 - Line out left front, LF
5 - Line out right front, RF
6 - Switched positive (B+ out) for amplifier

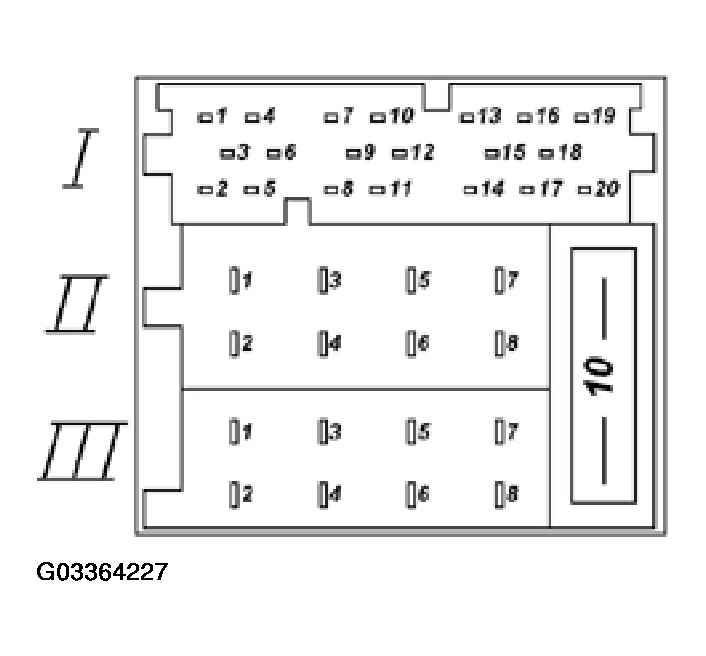

Fig 1: Identifying Sound System Multi-Pin Connector I, Part 1, Yellow

Courtesy of VOLKSWAGEN OF AMERICA, INC.
