Multi-pin connector III, T8, 8 -pin, black

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to items in Fig 1 .
  1. Alarm system connection, to alarm system control module -J284-
  2. Open
  3. Open
  4. Ignition key on/off connection (from ignition/starter switch (D), terminal SU)
  5. Switched positive voltage (B+) for amplified roof antenna (GTI and Jetta GLX only)
  6. Radio illumination, terminal 58b
  7. Battery positive voltage (B+), terminal 30 (from fuse -S22 -)
  8. Ground (GND), terminal 31

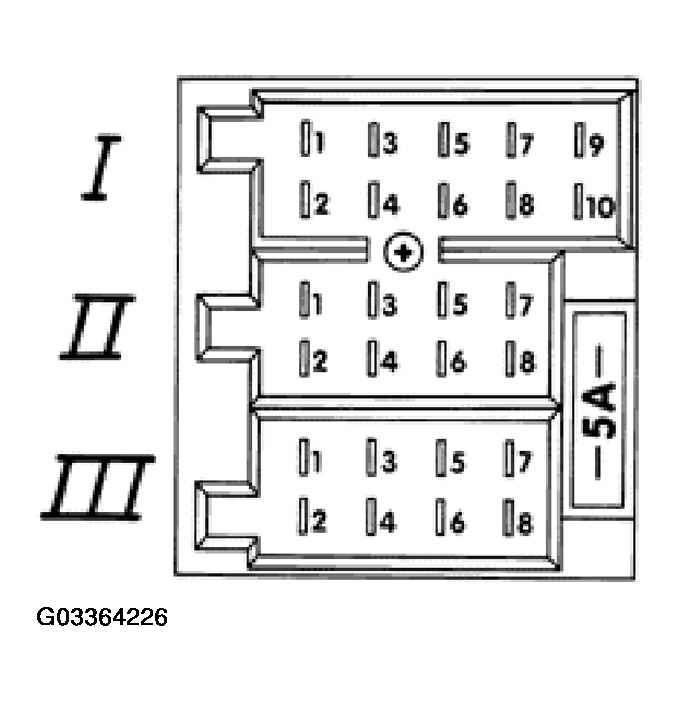

Fig 1: Identifying Radio (Deluxe and Premium) Multi-Pin Connector III, T8, 8 -Pin, Black
G03364226Courtesy of VOLKSWAGEN OF AMERICA, INC.
