Securing antenna cable to radio
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

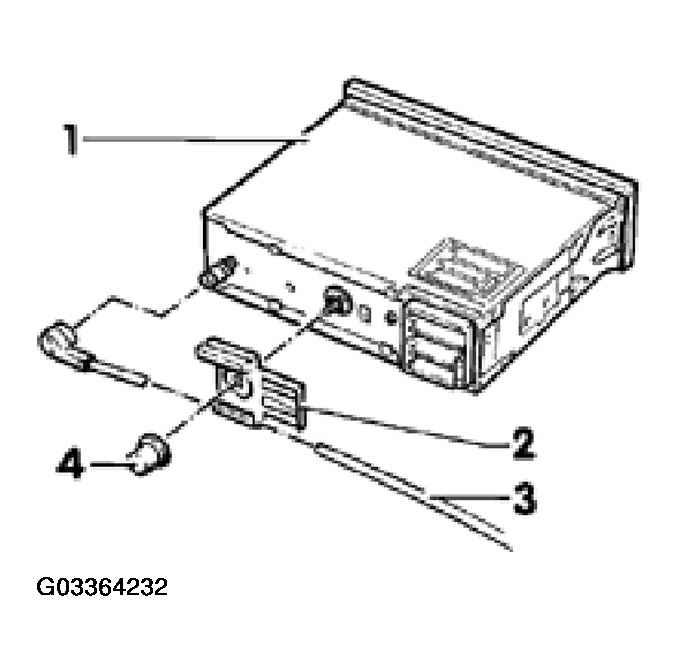

The following list refers to items in Fig 1
.
- Stereo radio
- Cable guide
- Antenna cable
- Rubber bushing
- Install cable guide -2- over stud on back of stereo radio.
- Install rubber bushing -4-.
- Attach antenna cable -3- to radio and clip into cable guide -2-.
