Radio (Sound System), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Slide radio release tool 3316 into release slots (arrows) until they engage.

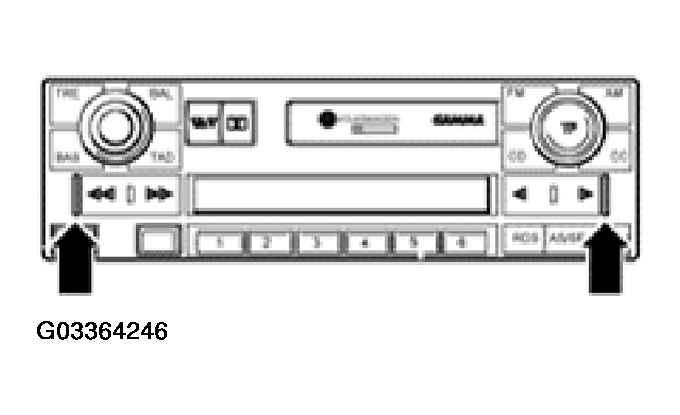

Fig 1: Sliding Radio Release Tool Into Release Slots (Sound System)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Pull radio out of instrument panel using grip rings on release tool.

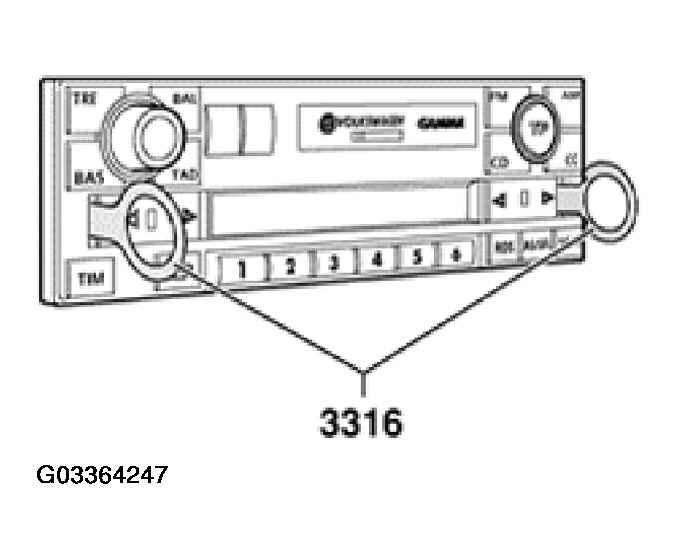

Fig 2: Pulling Radio Out Of Instrument Panel Using Grip Rings On Release Tool (Sound System)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Disengage harness connectors from radio and detach.

NOTE:

The radio release tool 3316 must not be pushed to the side or tilted during this procedure.
To remove the release tool from radio, press in locking lugs on side of radio.
