Golf/Cabrio/Jetta CD changer, preparation: Setting:

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Sides

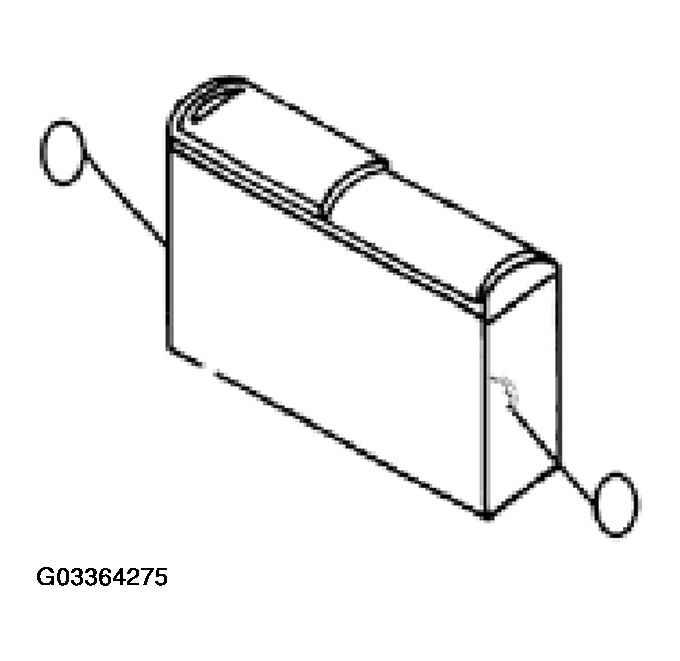

If necessary, remove brackets on sides of CD changer.

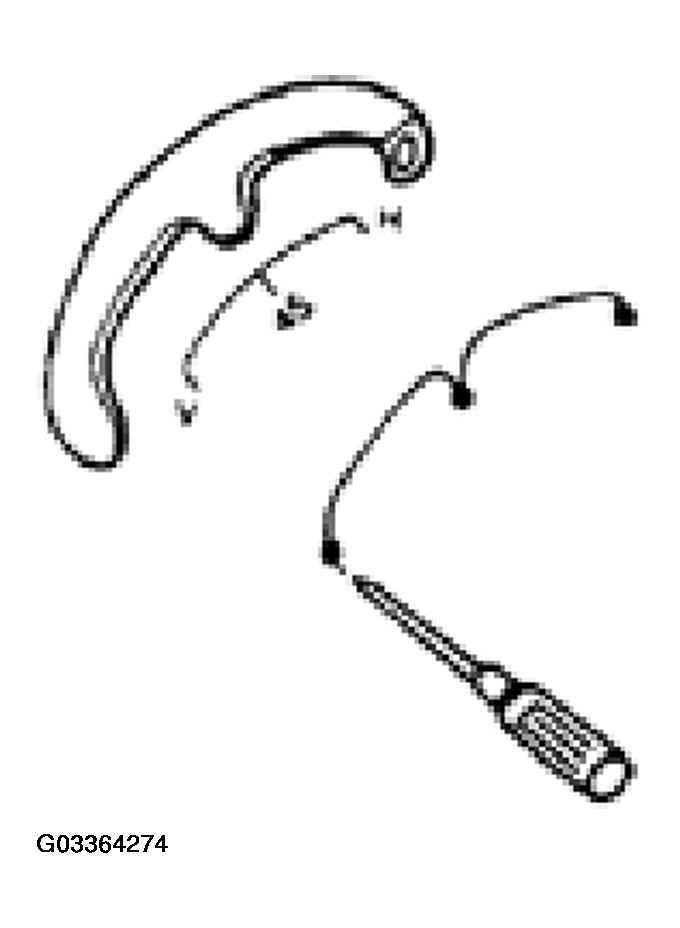

Insert tip of small screwdriver into round hole and slide switch completely to the vertical ("V") position.

Fig 1: Inserting Tip Of Small Screwdriver Into Round Hole

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Angle of installation selection switches may be preset at the manufacturer for horizontal ("H") installation.
Always check/set switches prior to CD changer installation.
Switches must move completely to their end positions.

Cover selector switch openings with supplied self adhesive seals.
Reinstall brackets on sides of CD changer.

Fig 2: Installing Brackets On Sides Of CD Changer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION: Before proceeding with installation:

Golf/Cabrio CD-Prep, inspection
Obtain radio security code.
Note customer's pre-set radio stations.
Ignition OFF!
Disconnect Battery Ground (GND) strap.

Inspect vehicle for CD -prep (see below).

Golf/Cabrio CD-Prep, inspection:

If vehicle is factory equipped with CD changer cable -1- (location under rear seat as shown):

Complete routing of CD changer cable:

For all vehicles:

If vehicle is not factory equipped with CD changer cable:

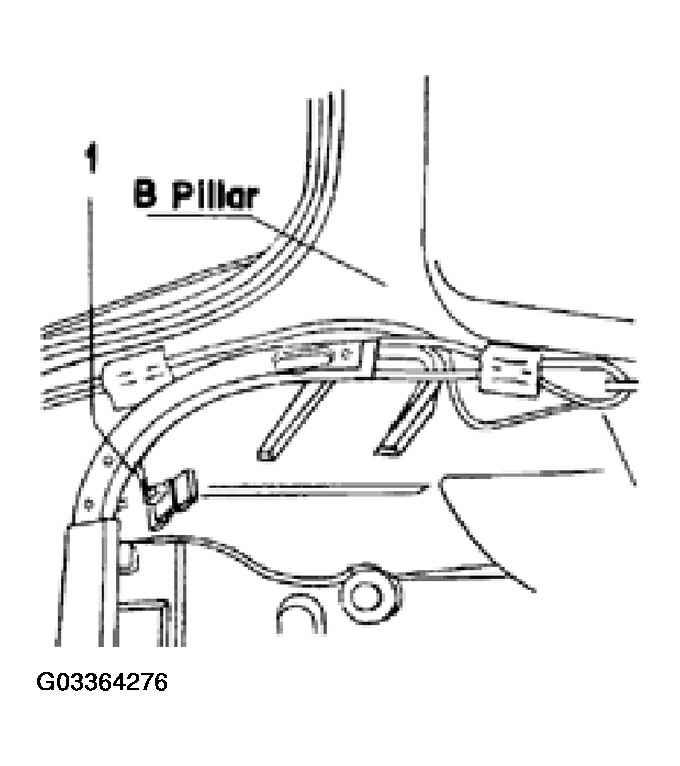

Fig 3: Routing Cable Of CD Changer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

CD changer cable installation. Refer to Fig 5

Jetta CD-Prep, inspection

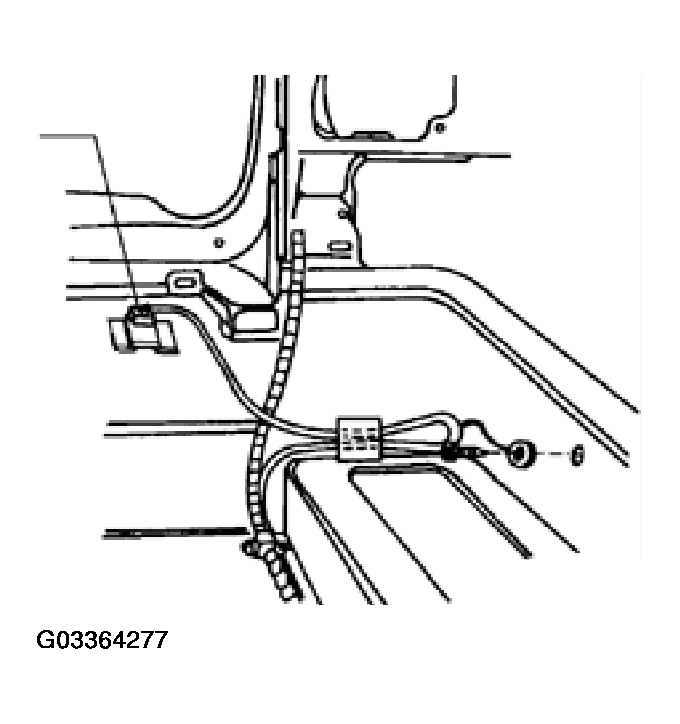

If vehicle is factory equipped with CD changer cable (location at left rear tail light assembly as shown):

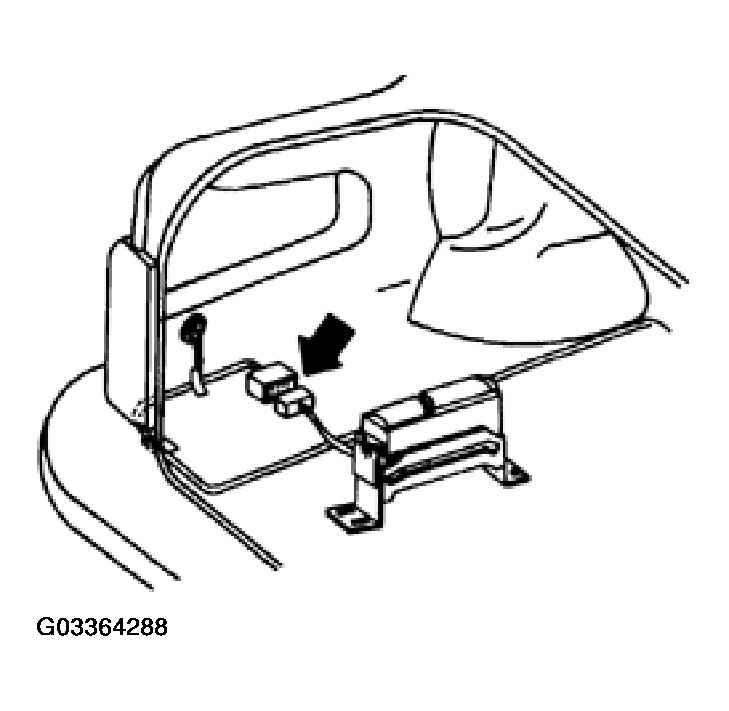

Fig 4: Identifying Factory Equipped CD Changer Cable

Courtesy of VOLKSWAGEN OF AMERICA, INC.

For all vehicles

If vehicle is not factory equipped with CD changer cable:

CD changer cable installation, refer to Fig 5 .

Golf/Cabrio/Jetta CD changer cable, installation

Remove radio using tool VW160.
Remove passenger side knee bar (or tray if equipped).
Connect CD changer cable connector -1- to free 8 pin terminal on rear of radio (upper right connector on radio).
Feed remaining CD changer cable into area of removed passenger side knee bar (or tray) for routing.
Secure CD changer cable to existing wiring harness using supplied cable ties -3-, or use adhesive tape to route along metal framework.

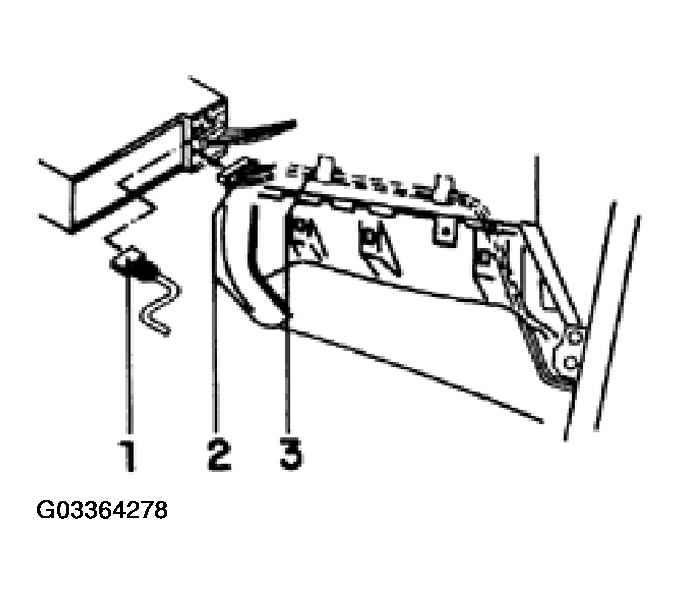

Fig 5: Connecting CD Changer Cable Connector To Free 8 Pin Terminal On Rear Of Radio
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Ensure CD changer cable is secured in a manner to prevent rattles and squeaks.

Feed remaining CD changer cable into passenger's footwell kick panel area for routing along passenger sill panel.
Reinstall radio and passenger side knee bar (or tray), making sure that CD changer cable is not pinched.
Remove passenger side footwell trim -2- and sill panel trim -1-.
Lift rear seat bottom cushion and remove rear sill panel trim -4-.

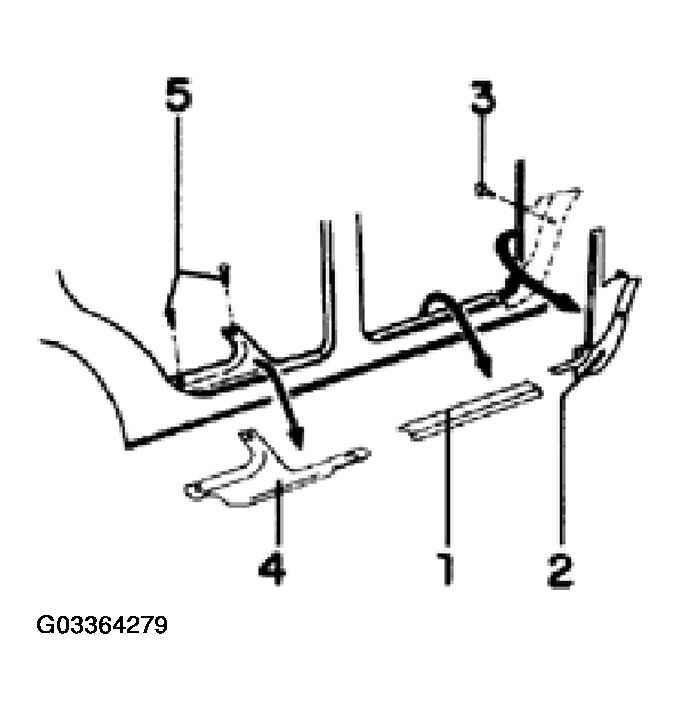

Fig 6: Removing Passenger Side Footwell Trim And Sill Panel Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Golf/Cabrio, routing

If necessary remove rear seat and center luggage compartment floor carpet.
Route CD changer cable along passenger side sill panel, under rear seat, and into luggage compartment area to right rear as shown (fasten with adhesive tape).
Fasten ground connection, refer to Fig 9 .

Jetta, routing

If necessary remove rear seat and center luggage compartment floor carpet.
Route CD changer cable along passenger side sill panel, under rear seat, and into luggage compartment area to left rear tail light area as shown (fasten with adhesive tape).
Fasten ground connection, refer to Fig 4 .

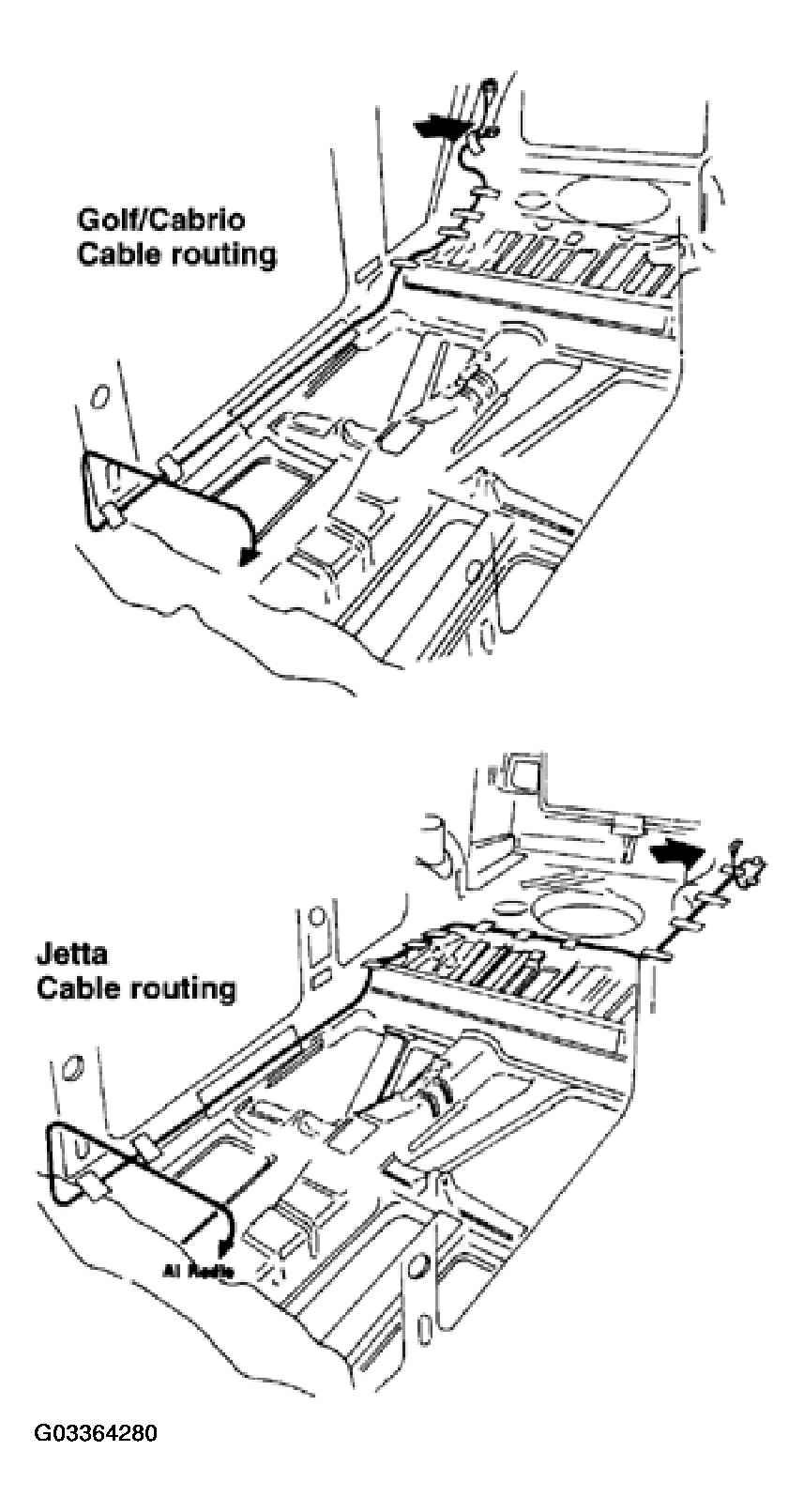

Fig 7: Identifying CD Changer Cable Routing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Golf/Cabrio/Jetta, CD changer cable, installation continued

Secure CD changer cable to sill panel at all of the vehicle main harness clamp locations as illustrated.

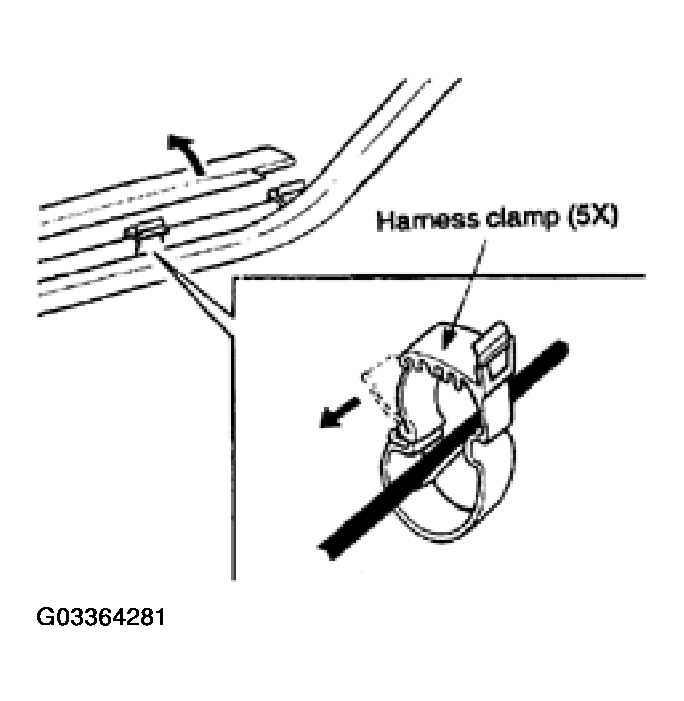

Fig 8: Securing CD Changer Cable To Sill Panel At Main Harness Clamp

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Golf/Cabrio continued

Lift right rear luggage compartment side panel carpet below "C" pillar as necessary.
Route CD changer cable into area behind carpet and fasten with adhesive tape as shown.
Measure, mark and center punch mounting holes for CD changer mounting bracket as illustrated.
a = 107.5 mm b = 82.5 mm c = 77.5 mm d = 11 mm e = 55 mm

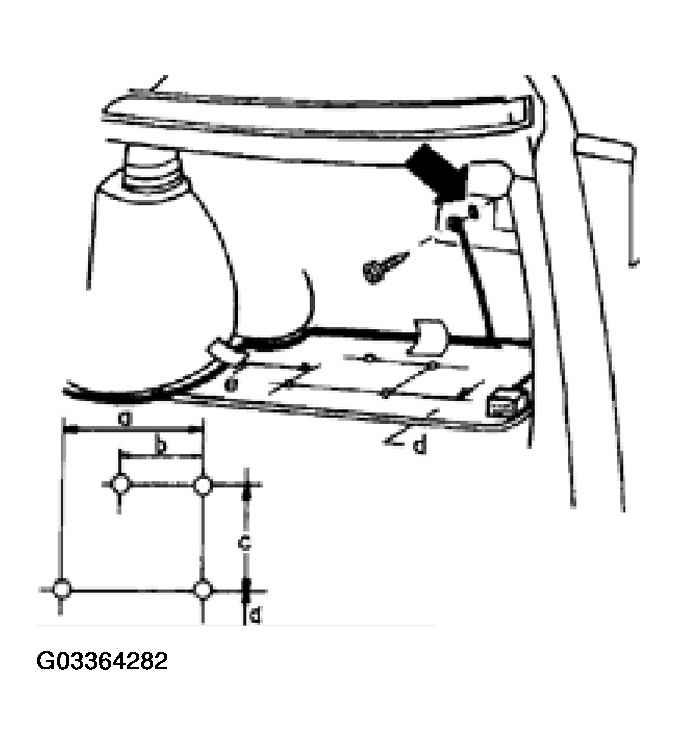

Fig 9: Marking And Center Punching Mounting Holes For CD Changer Mounting Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Drill 4mm holes at marked locations.
Fasten ground connection as shown -arrow-.

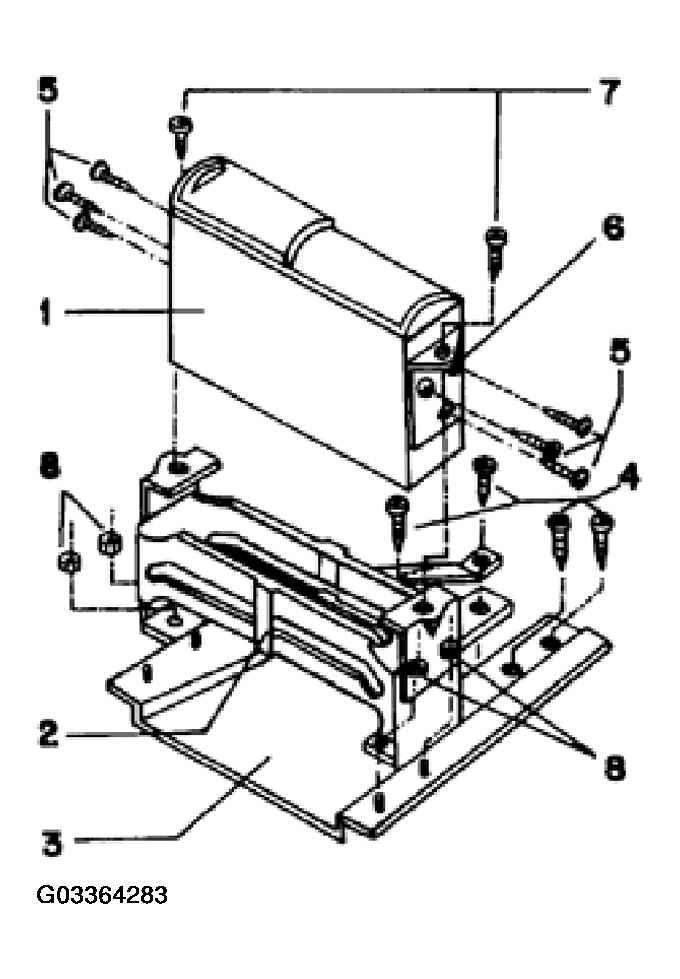

Mount CD changer bracket -2- to main bracket -3- using supplied nuts -8-.
If necessary, mount support -6- to CD changer -1- using supplied self tapping screws -5-.
Mount CD changer -1- to changer bracket -2- using supplied self tapping screws -7-.

Fig 10: Mounting CD Changer Bracket To Main Bracket Using Supplied Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.
When mounting CD changer into bracket, pass connector cable under bracket -arrow-.

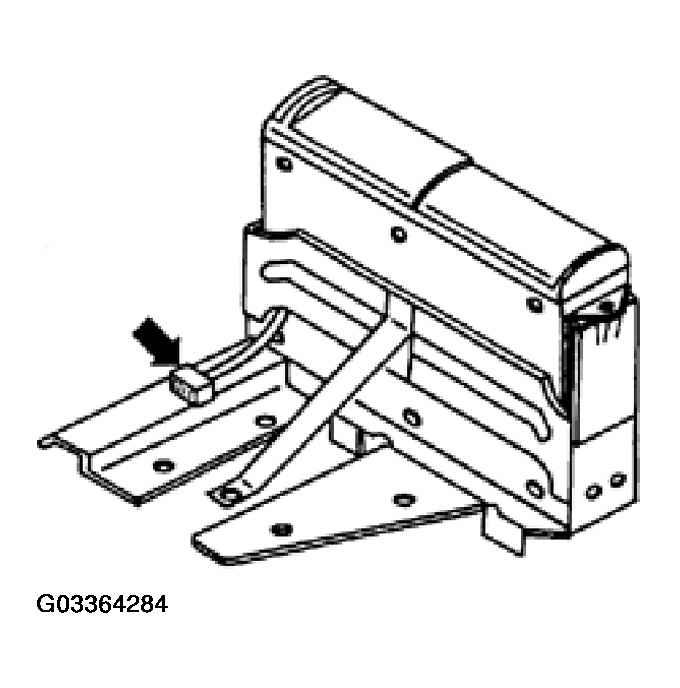

Fig 11: Passing Connector Cable Under Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Refit side panel carpet below "C" pillar.
Connect CD changer cable to CD changer connector -arrow-.

Fig 12: Connecting CD Changer Cable To CD Changer Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Route and secure excess cable as necessary.
Locate previously drilled holes through carpet, fasten CD changer assembly to vehicle floor rail (over carpet) at drilled locations using self tapping screws.

Jetta, installation continued

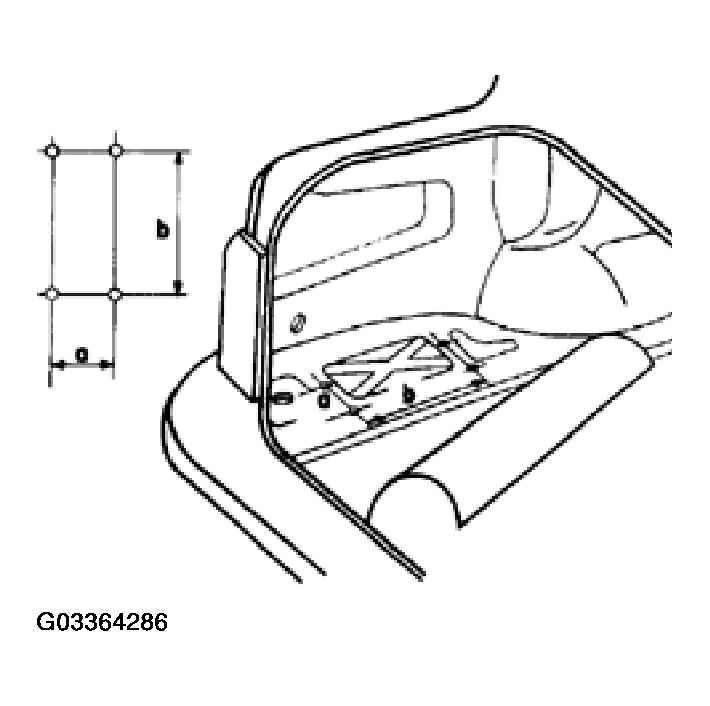

Use CD changer bracket as drilling template: Place on top of left rear side panel carpet at floor so that mounting flange holes correspond to the raised portions of luggage compartment floor rail (see illustration).
Hold bracket firmly in place and drill four, 4 mm holes at the bracket mounting flange, through carpet, into luggage compartment floor rail.

Fig 13: Drilling Holes At Bracket Mounting Flange Into Luggage Compartment Floor Rail

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When using the bracket as a drilling template, the square opening in one side of the changer bracket MUST face the tail light assembly.

Corresponding dimensions:

a = 40 mm
b = 307 mm

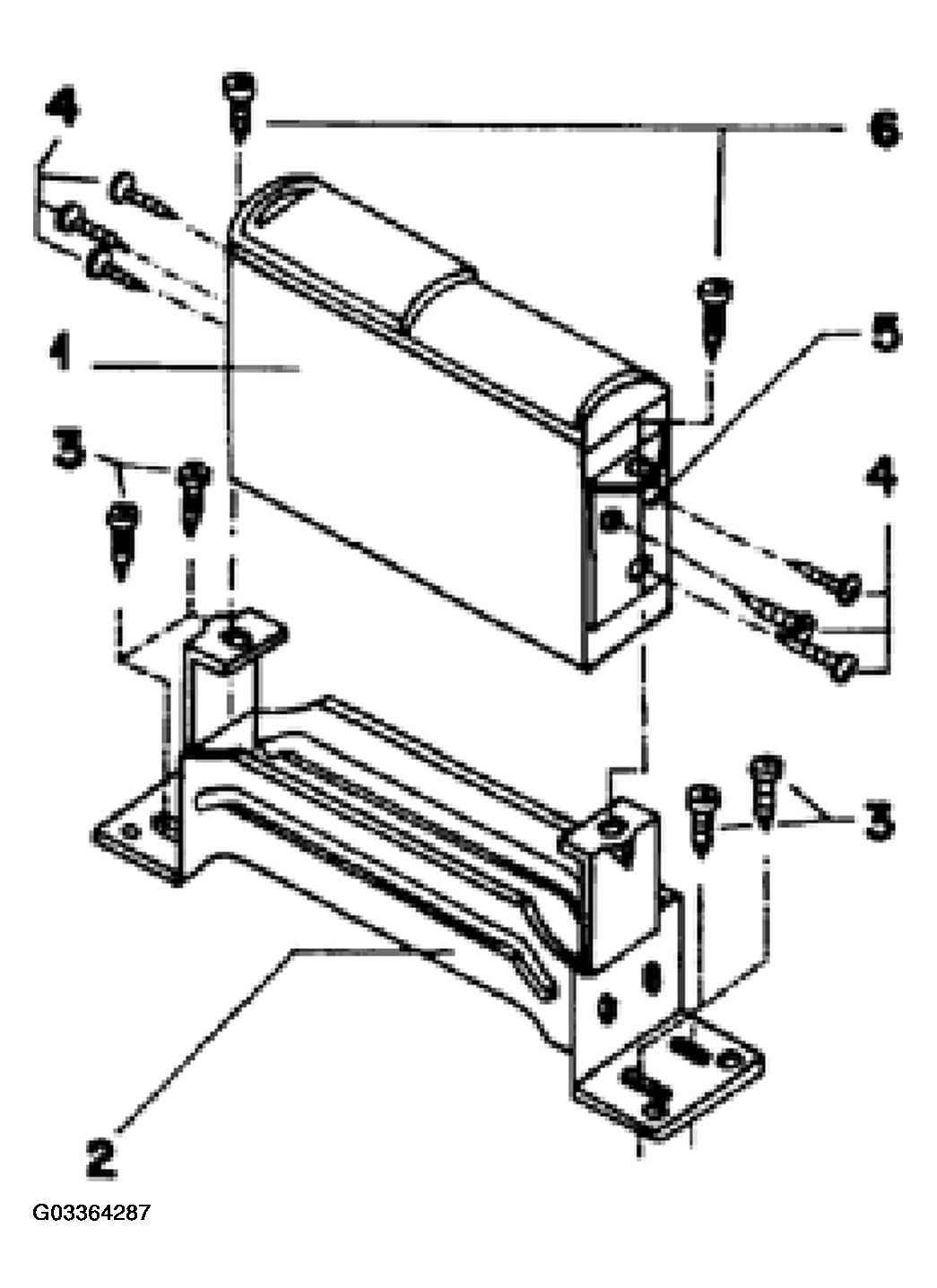

Mount support -5- to CD changer -1- using supplied self tapping screws -4-.
Mount CD changer -1- to changer bracket -2- using supplied self tapping screws -6-.

Fig 14: Mounting Support To CD Changer Using Supplied Self Tapping Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Route and secure CD changer cable as shown (make a small slit in carpet to allow cable to pass through).

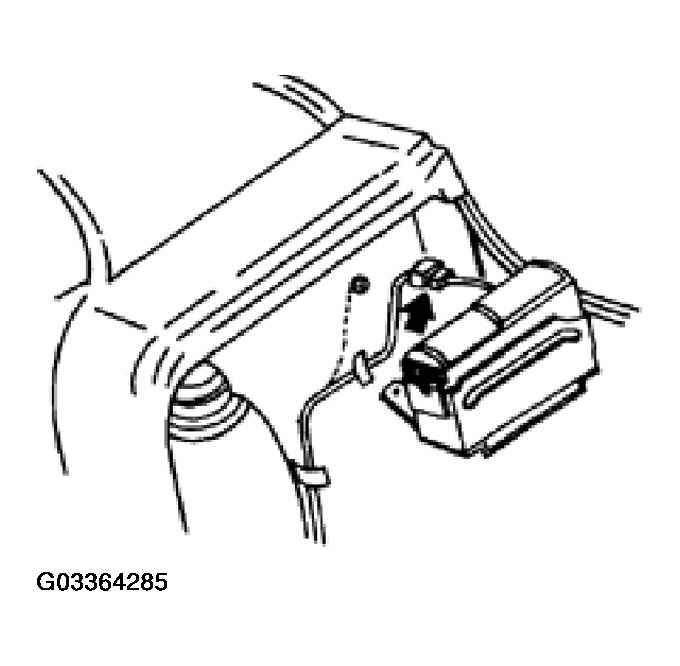

Connect CD changer cable to connector on CD changer -arrow-.
Route and secure excess cable as necessary.

Fig 15: Connecting CD Changer Cable To Connector On CD Changer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

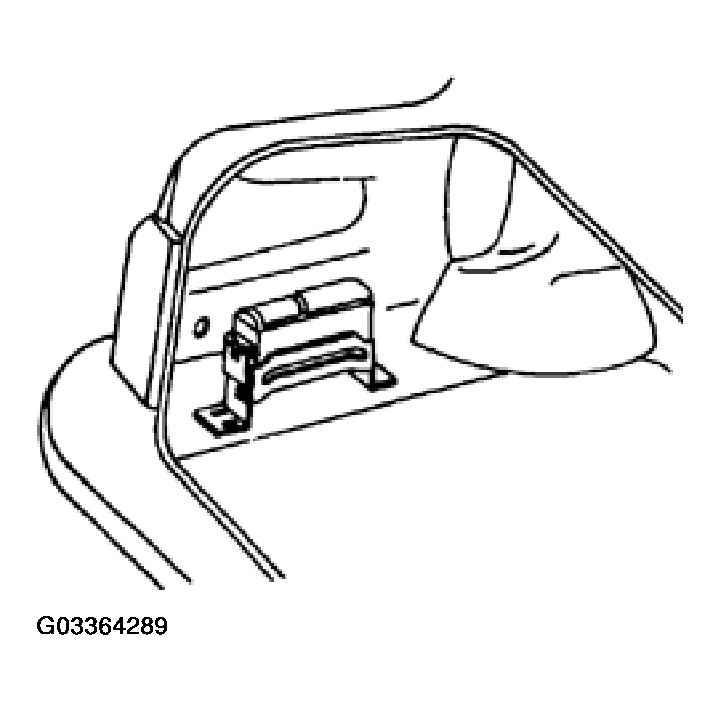

Fasten CD changer assembly to vehicle floor rail (over carpet) at drilled locations using self tapping screws.
Optional method is to fasten empty CD changer bracket to vehicle floor first (without CD changer installed), then mount CD changer to bracket.

Fig 16: Fastening CD Changer Assembly To Vehicle Floor Rail
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Golf/Cabrio/Jetta, installation continued

Reinstall and secure all previously removed sill panel trim, seat cushions and luggage compartment carpet.
Vacuum luggage compartment (including underneath all carpet areas if necessary).
Reconnect Battery Ground (GND) strap,
Input radio security code and reset customer's preset stations.
Code radio for CD changer operation, refer to CONTROL MODULE (RADIO) VERSION, CODING (FUNCTION 07) .
Refer to CD changer owner's guide and check proper operation of CD changer.
Ensure CD changer owner's guide is forwarded to customer.

NOTE: After reconnecting battery:

Activate vehicle equipment such as clock and power windows as per Owner's Manual.
Activate readiness code. Refer to READ MEASURING VALUE BLOCK (FUNCTION 08) .
