Telescoping antenna, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

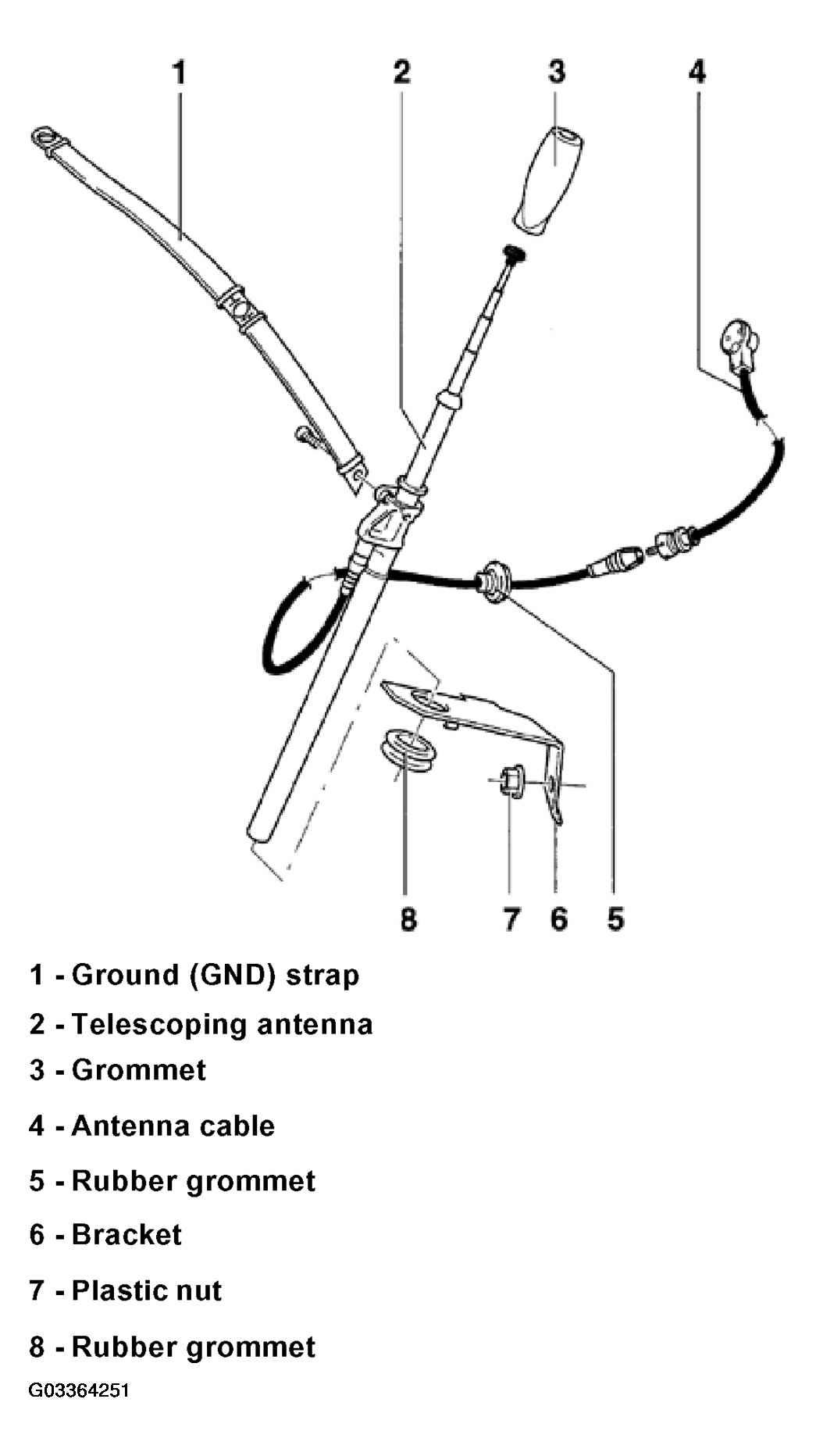

The following list refers to items in Fig 1
.
- Ground (GND) strap
- Mounting points. Refer to Securing points for antenna Ground (GND) strap
- Telescoping antenna
- Removing/installing. Refer to Removing and installing telescoping antenna -R11-
- Grommet
- Antenna cable
- Routed from lower left A -pillar to radio
- Rubber grommet
- Bracket
- Plastic nut
- Rubber grommet
