Vehicles (from 1994 m.y. and on)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

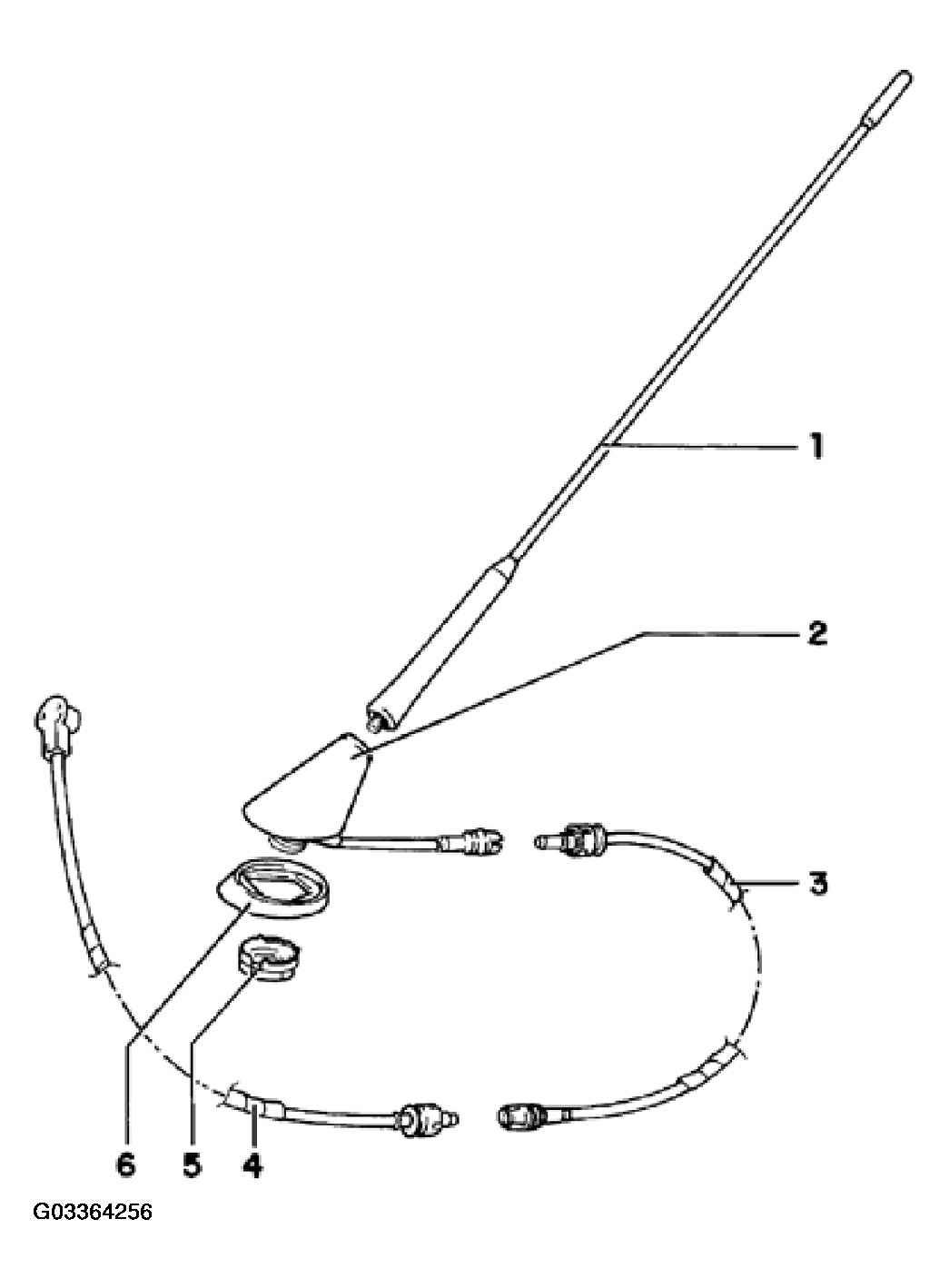

The following list refers to items in Fig 1
.
- Antenna whip
- Antenna base
- Antenna amplifier located in antenna base
- To remove and install, first lower rear part of molded headliner
- Antenna cable
- Routed from roof antenna to lower left A-pillar
- Antenna cable
- Routed from lower left A-pillar to radio
- M14 nut with serrated washer
- Torque: 7 N.m (62 in lb)
- Serrated washer is attached to nut with plastic ring
- Apply dielectric grease to inside of roof in area of serrated washer
- Seal
