Gaskets, oil seals

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

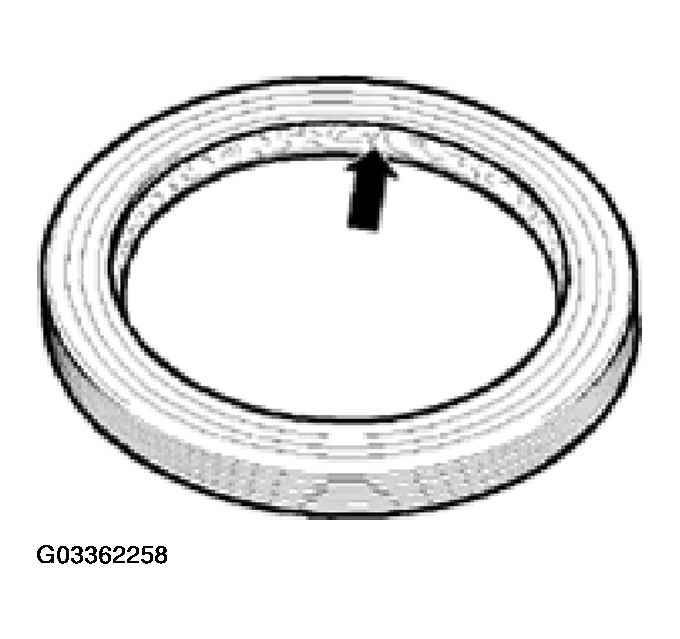

Radial shaft seals: Pack space between sealing edges - arrow- with grease before installing.

Fig 1: Pack Space Between Sealing Edges With Grease Before Installing

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Always install new O-rings.
After installation, check ATF level in transmission or gear oil in final drive, adjust to correct level if necessary.
