Final drive, overview
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

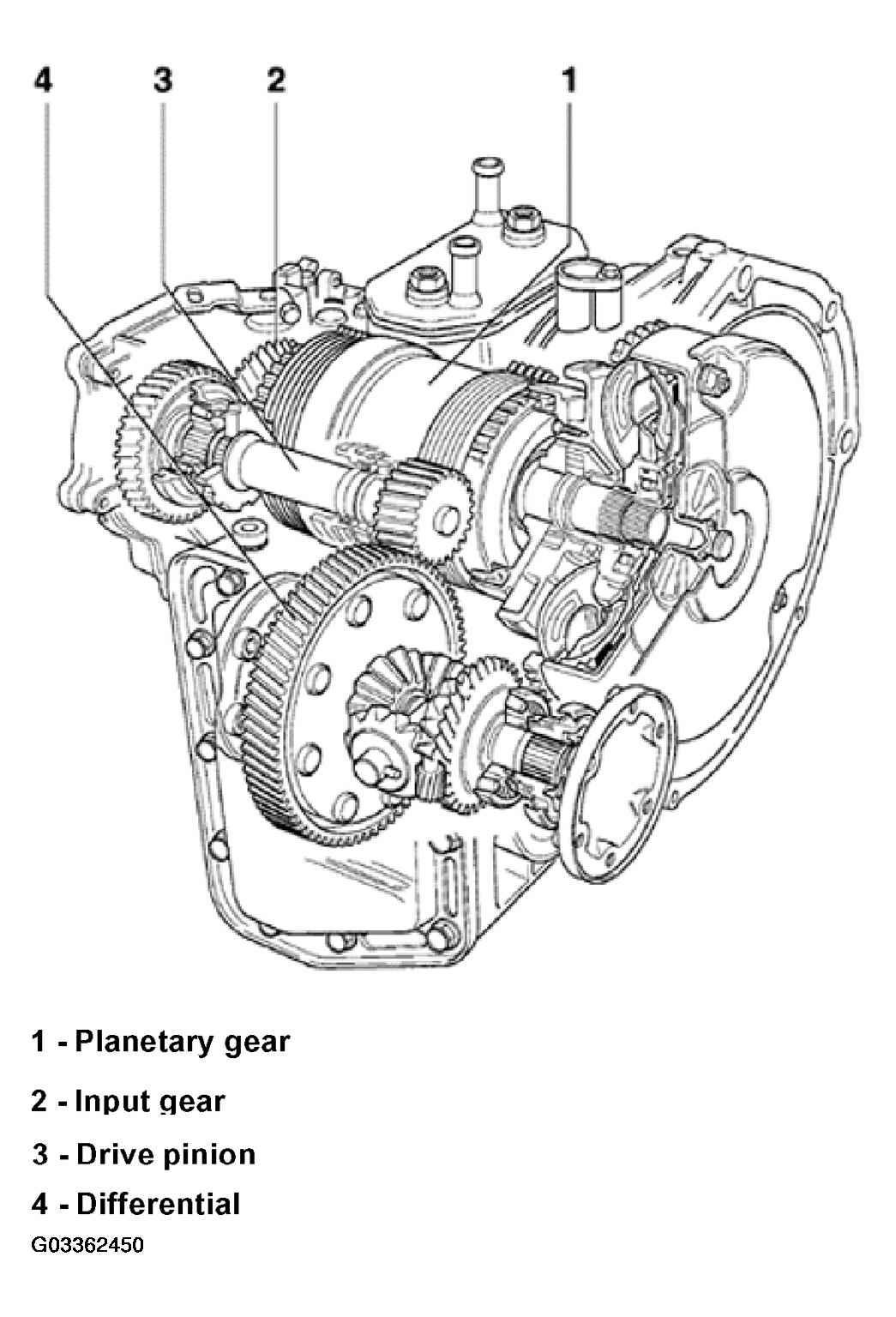

The following list pertains to Fig 1.
- Planetary gear
- Disassembling and assembling, see TRANSMISSION, DISASSEMBLING AND ASSEMBLING, OVERVIEW
- Input gear
- Removing and installing, see INPUT GEAR, REMOVING AND INSTALLING
- Adjusting: see INPUT GEAR, ADJUSTING
- Final drive: adjusting (overview), see FINAL DRIVE, ADJUSTING
- Repairs on input gear can only be performed after individual components of transmission have been removed.
- Drive pinion
- Removing and installing, see DRIVE PINION, REMOVING AND INSTALLING
- Adjusting, see DRIVE PINION, ADJUSTING
- Final drive, adjusting (overview), see FINAL DRIVE, ADJUSTING
- Differential
- Removing and installing, see DIFFERENTIAL, REMOVING AND INSTALLING
- Disassembling and assembling, see DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING
- Adjusting, see DIFFERENTIAL, ADJUSTING
- Final drive, adjusting (overview), see FINAL DRIVE, ADJUSTING
