Friction torque, checking
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Friction torque can only be checked if tapered roller bearings have been replaced.
If tapered roller bearings have not been replaced, friction torque must not be checked. Then, adjust drive pinion as described from, see DRIVE PINION, ADJUSTING .
- Lubricate bearing beforehand with gear oil.

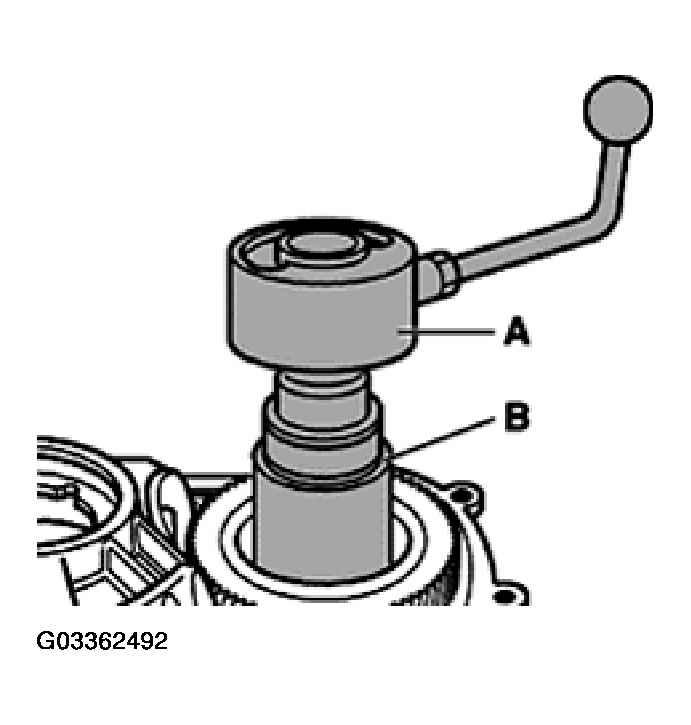

A - Torque gauge, commercially available, 0 - 600 Ncm (0 - 50 in. lb)
B - Wrench socket (41 mm)
- Friction torque of new tapered roller bearings must be 80-120 Ncm (7 - 11 in lb).
