Special tools and equipment

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

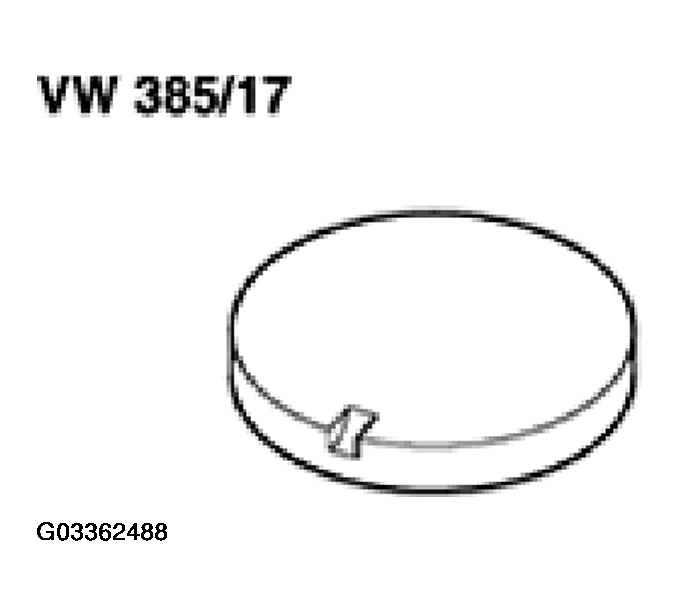

VW 385/17 End dimension plate

Fig 1: Identifying Special Tool VW 385/17 End Dimension Plate

Courtesy of VOLKSWAGEN OF AMERICA, INC.

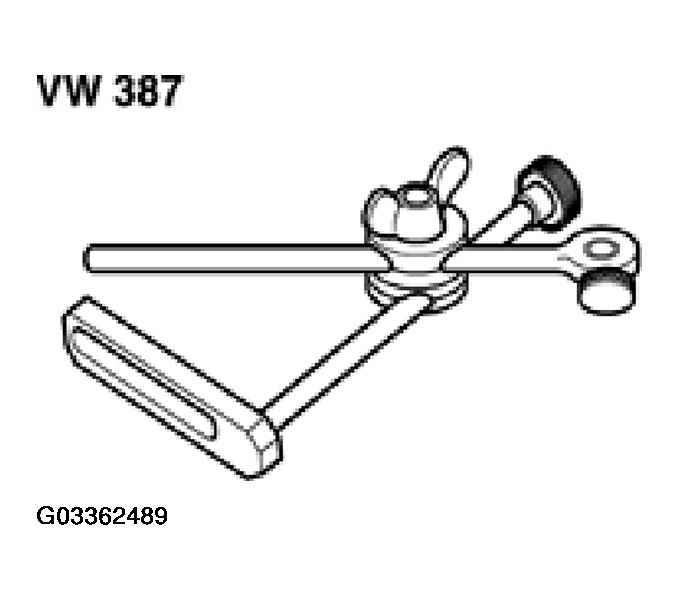

VW 387 Universal dial gauge bracket
Dial gauge
Torque gauge (commercially available) 0 ... 600 Ncm (0-53 in. lb)

Fig 2: Identifying Special Tool VW 387 Universal Dial Gauge Bracket

Courtesy of VOLKSWAGEN OF AMERICA, INC.
