Friction torque, checking
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

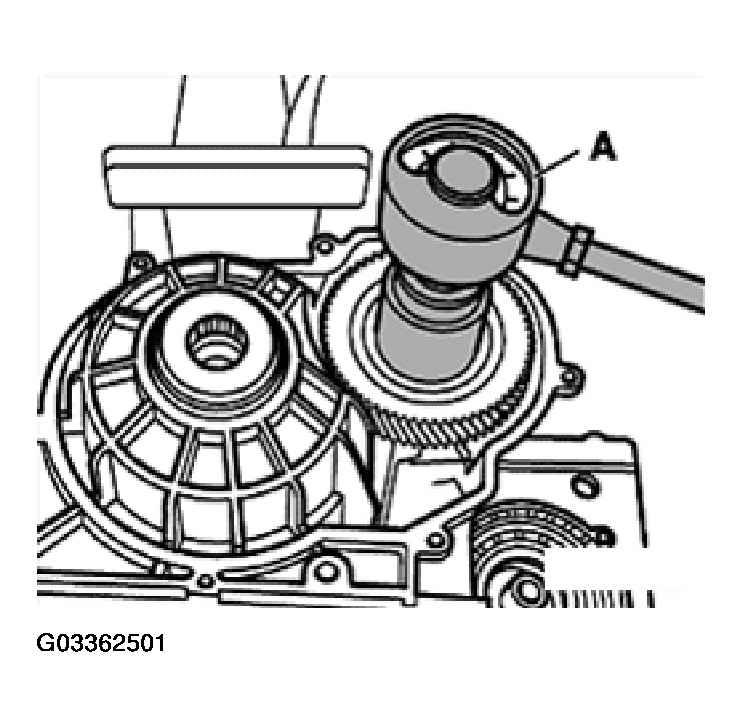

A - Torque gauge, commercially available 0 - 600 Ncm (0 - 50 in. lb)
- Lubricate bearing beforehand with gear oil.
Friction torque of new tapered roller bearings must be 60 - 80 Ncm (5 - 7 in. lb) greater than at drive pinion.
