Oil seal, replacing (left)
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Unbolt axle shaft from drive flange
- Mark installation position of ball joint bolts on left control arm and remove bolts.

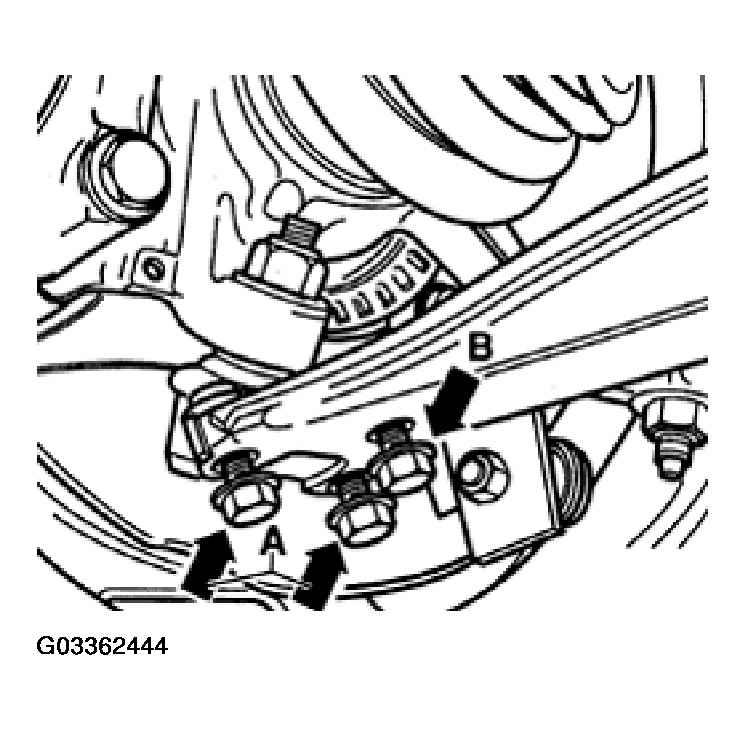

- Remove outer bolts -arrow A-.
- Loosen inner bolt -arrow B-.
- Turn steering to right, full lock.
- Swing ball joint out and place left -hand axle shaft to one side and secure.
- Pierce sealing cap in drive flange with screwdriver and pry out.

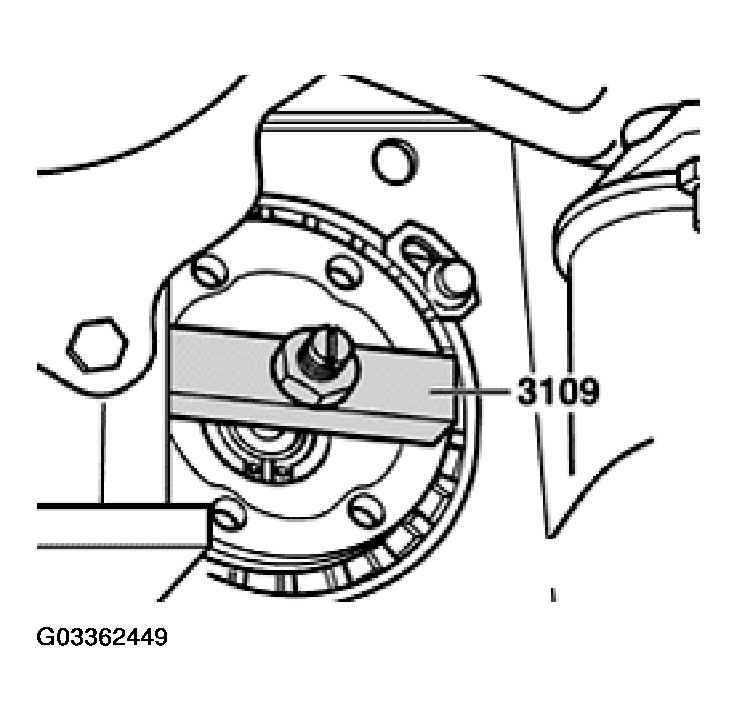

- Mount installation tool 3109 and remove circlip.

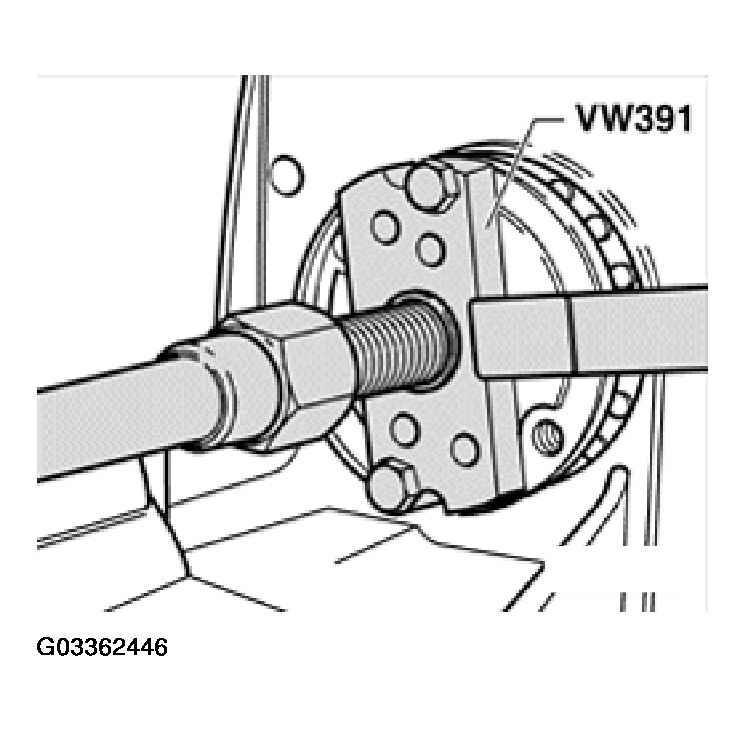

- Pull off drive flange with VW 391.
- Pull out drive flange oil seal with VW 681.NOTE: On vehicles with flange for Tripodic drive shaft the joint flange is removed with Kukko 18-0 puller and two 8x35 mm bolts with 8 mm diameter washers.

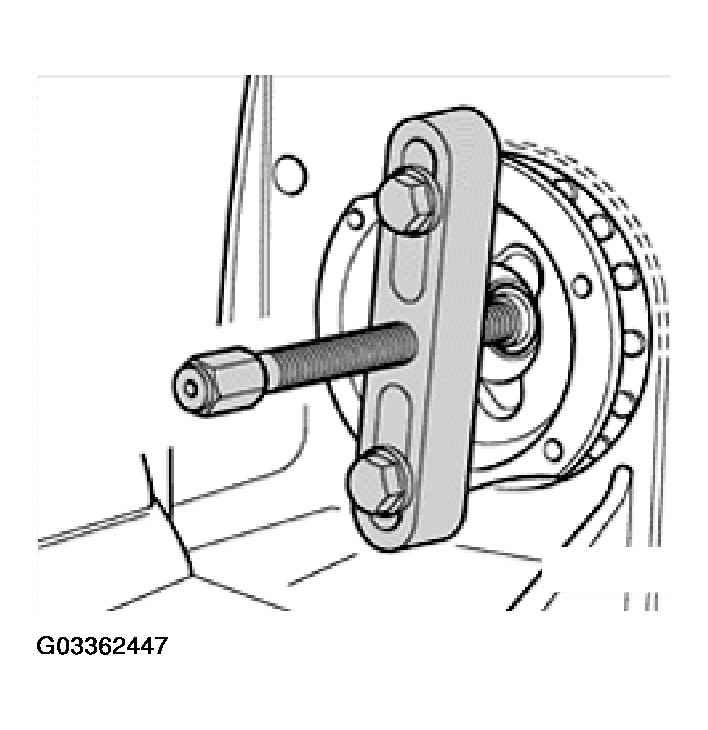

- Bolt Kukko 18-0 puller to axle shaft flange with two 8x35mm bolts and 8mm washers.
- Remove circlip for drive flange.
- Remove drive flange.
- Remove drive flange oil seal with VW 681.

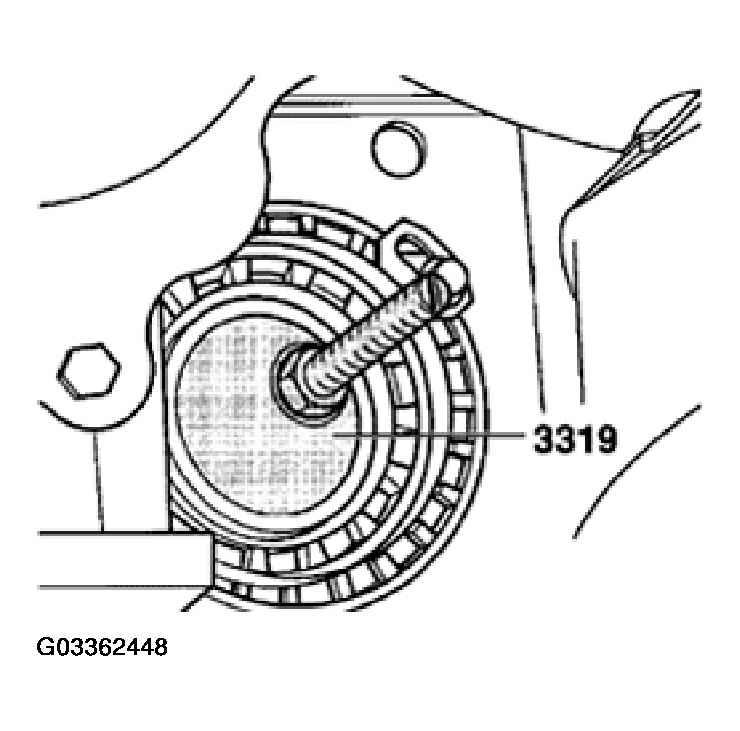

- Install (pull into stop) new oil seal with press piece 3319, M10 threaded rod approx. 80 mm (3.15 in. long) and nut with washer.
- Fill space between seal and dust lip with multi-purpose grease.
- Install drive flange, dished washer and circlip.
- Pull drive flange in.NOTE: Drive flange can also be pulled in with VW 391.

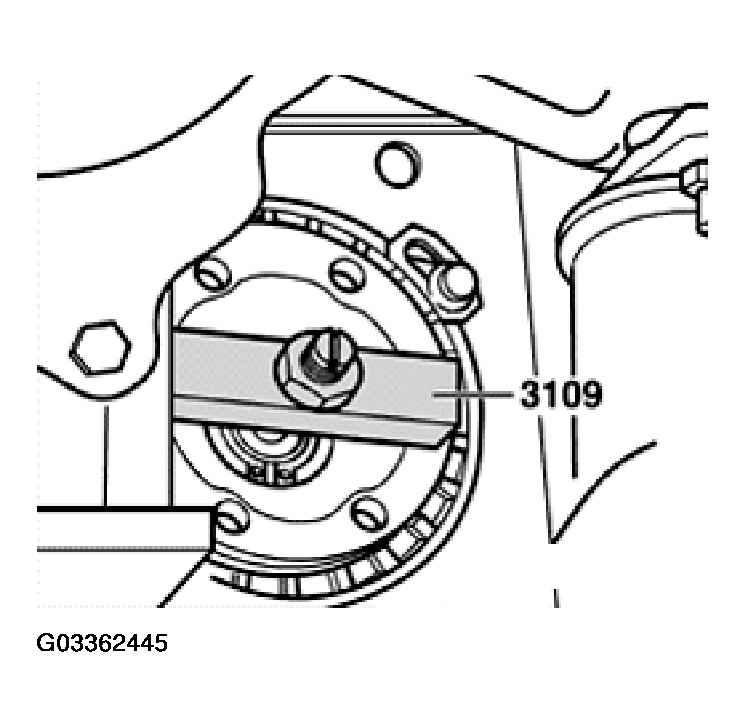

- Install circlip and seal drive flange with cover.
- Install axle shaft.
- Reconnect ball joint to control arm.
- Check final drive oil level: see FINAL DRIVE OIL LEVEL, CHECKING .
