Differential, removing and installing: Differential
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If tapered roller bearings are to be re-used, mark adjusting ring, see Adjusting ring, marking
- Drive pinion does not need to be removed for removing and installing the differential.

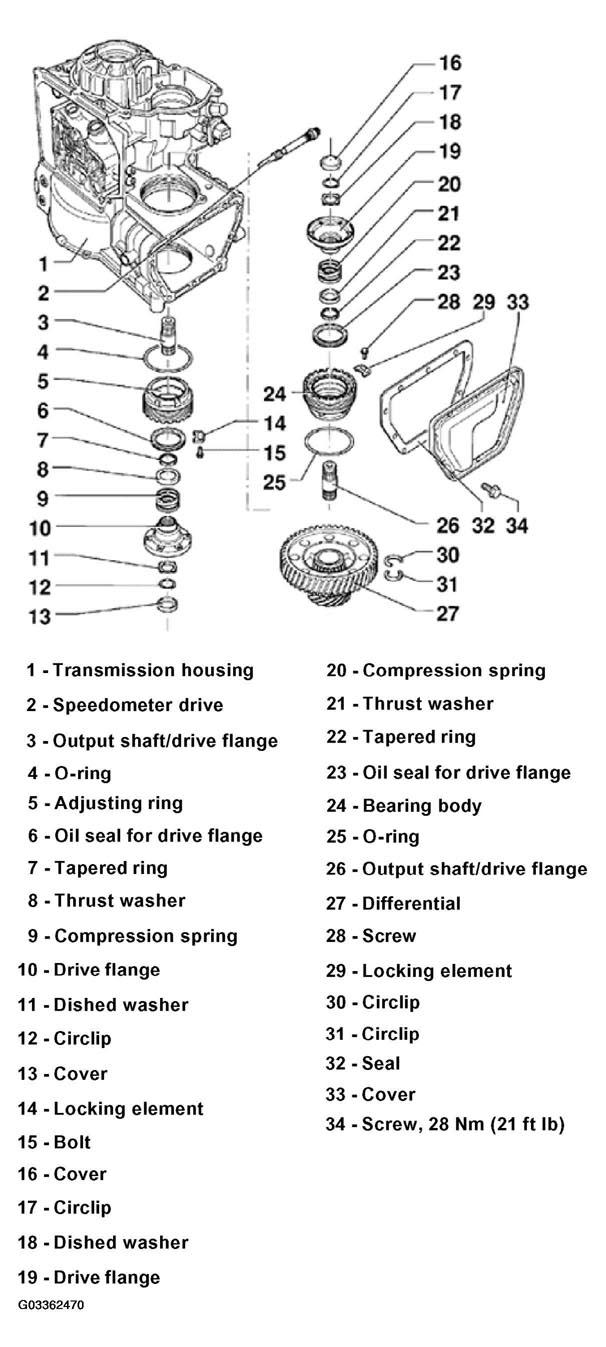

The following list pertains to Fig 1.
- Transmission housing
- Speedometer drive
- With mark for oil level indication, see Speedometer drive
- Output shaft/drive flange
- Install thread facing drive flange
- Remove before differential removal
- Adjust differential before installing
- O-ring
- Always replace
- Adjusting ring
- Removing, see Adjusting ring, removing
- If original bearings are re - installed, mark for reinstallation, see Adjusting ring, marking
- If new bearings are installed, closely follow adjusting instructions, see DIFFERENTIAL, ADJUSTING
- Oil seal for drive flange
- Before installing, pack space between sealing surfaces with multi-purpose grease
- Can be replaced with transmission installed, see DRIVE FLANGE SEAL, REMOVING AND INSTALLING
- Remove with VW 681
- Installing (driving in), see Drive flange oil seal, installing (driving in to stop)
- Tapered ring
- Shoulder faces thrust washer
- Thrust washer
- Place over compression spring
- Compression spring
- Drive flange
- Install with tapered ring, thrust washer and compression spring
- Remove before removing inner circlip at differential tapered bearing
- Removing and installing, see Drive flange, removing and installing
- Dished washer
- Circlip
- Cover
- Locking element
- Bolt
- 12 N.m (9 ft lb)
- Cover
- Circlip
- Dished washer
- Drive flange
- Install with tapered ring, thrust washer and compression spring
- Remove before removing inner circlip at differential tapered gear
- Removing and installing, see Drive flange, removing and installing
- Compression spring
- Thrust washer
- Place over compression spring
- Tapered ring
- Shoulder faces thrust washer
- Oil seal for drive flange
- Before installing, pack space between sealing surfaces with multi -purpose grease
- Can be replaced with transmission installed, see DRIVE FLANGE SEAL, REMOVING AND INSTALLING
- Remove with VW 681
- Installing (driving in), see Drive flange oil seal, installing (driving in to stop)
- Bearing body
- 150 N.m (111 ft lb)
- When installing new bearing, closely follow adjusting instructions, see DIFFERENTIAL, ADJUSTING
- Remove with 3155
- Installing, see Differential, installing
- O-ring
- Always replace
- Output shaft/drive flange
- Install thread facing drive flange
- Before removing flange, remove differential
- Adjust differential before installing
- Differential
- Disassembling and assembling, see DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING
- Before removing differential, remove bearing body, adjusting ring and output shafts
- Screw
- 12 N.m (9 ft lb)
- Locking element
- After adjusting tapered roller bearings, secure bearing body and adjusting ring
- Circlip
- Remove drive flange before removing circlip
- Removing and installing, see Circlip -arrows-, installing
- Circlip
- Remove drive flange before removing circlip
- Removing and installing, see Circlip -arrows-, installing
- Seal
- Always replace
- Cover
- For differential
- Screw, 28 N.m (21 ft lb)
- 28 N.m (21 ft lb)
- Install with thread locking fluid AMV 185 101 A1
