Reverse gear clutch - K2-
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Only disassemble if you clean or visually check components.
- When checking, ensure ball valve -arrow- is not damaged.

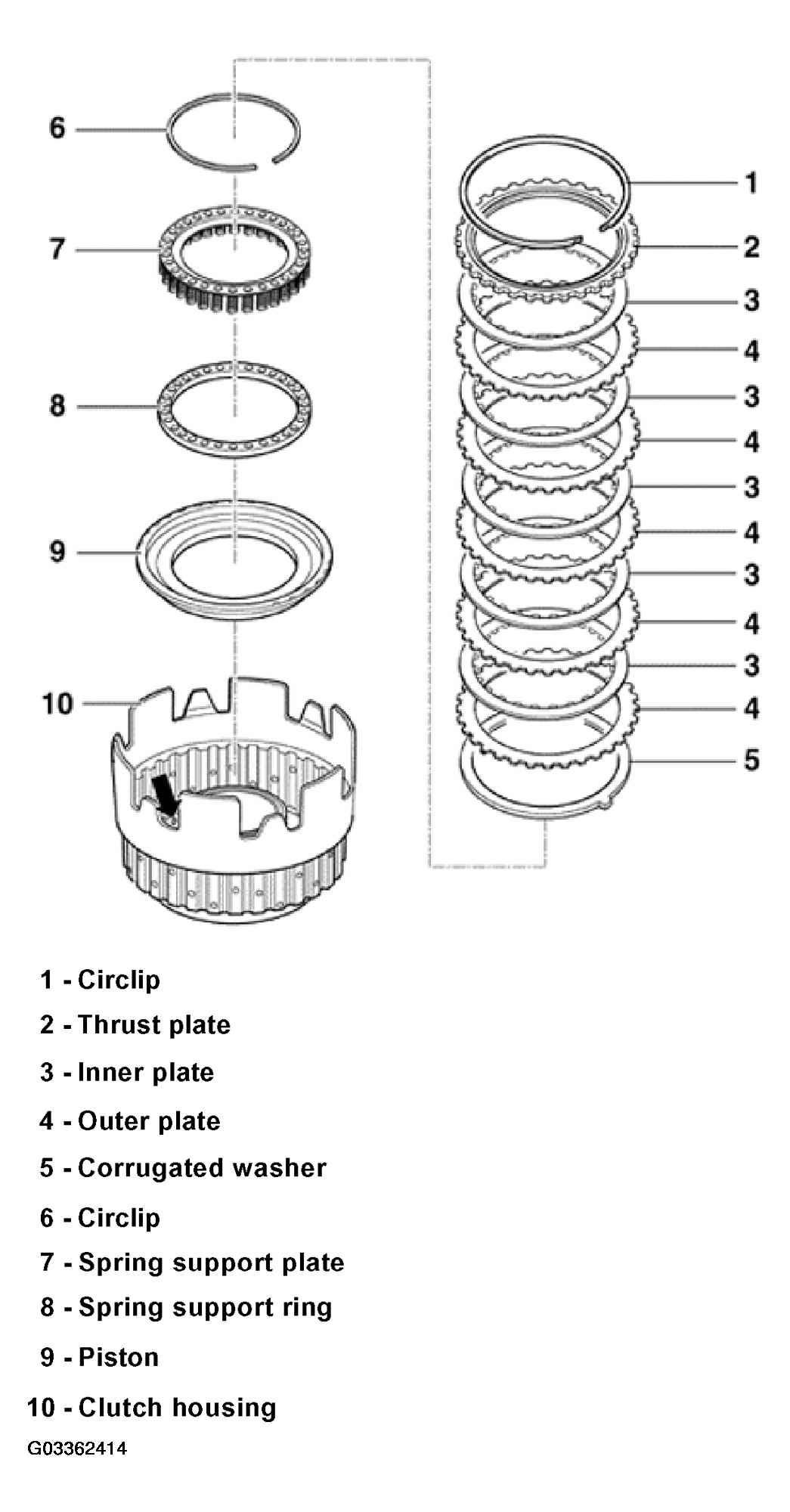

The following list pertains to Fig 1.
- Circlip
- Mark after removing and install in same position
- Thrust plate
- Smooth side facing inner plates
- Inner plate
- Quantity, see TRANSMISSION LAYOUT
- Outer plate
- Quantity, see TRANSMISSION LAYOUT
- Corrugated washer
- Circlip
- Removing and installing, see Circlip -arrow-, removing and installing
- Installation position, see Installation position of spring support plate, checking circlip
- Spring support plate
- With springs
- Installation position, see Installation position of spring support plate, checking circlip
- Spring support ring
- Piston
- Seals are vulcanized to piston
- Moisten seals with ATF before installing
- Turn piston slightly when installing
- Clutch housing
