Selector shaft with selector segments, removing and installing

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: With valve body installed be careful not to damage conductor strip.

Remove selector segment spring -A-.
Remove screw with washer -arrow-.
Washer prevents selector shaft movement.

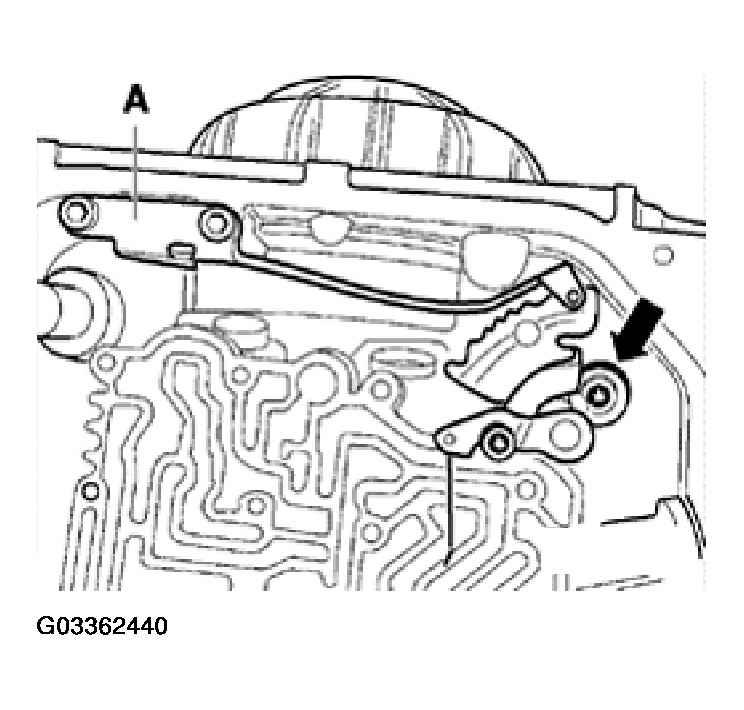

Fig 1: Removing/Installing Selector Shaft With Selector Segments

Courtesy of VOLKSWAGEN OF AMERICA, INC.
