Thrust plate and plates, installing on inner plate carrier

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install thrust plate -a- with smooth side facing inner plate and stepped side toward inner plate carrier.
Install 3 inner plates -b- and 2 outer plates -c-.
Clip in supporting ring with step -arrow-.

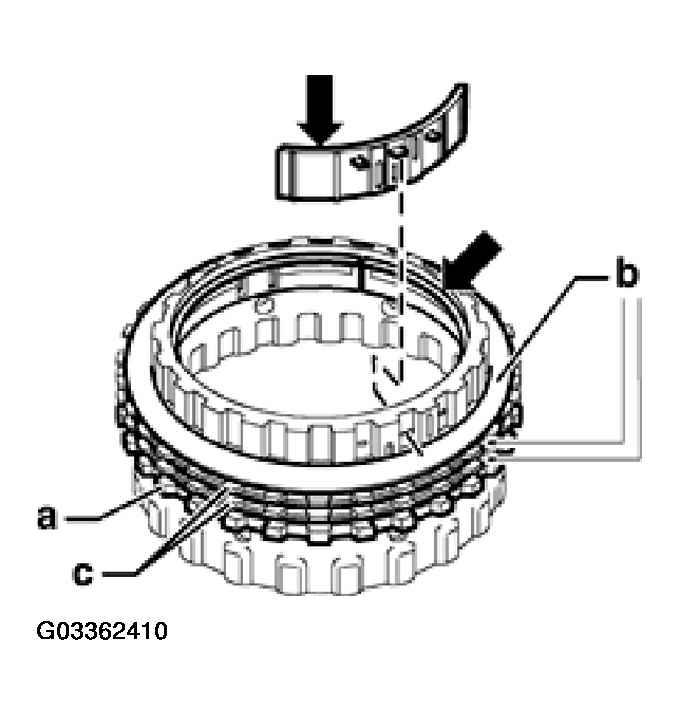

Fig 1: Thrust Plate And Plates, Installing On Inner Plate Carrier

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Position locating lugs correctly.
Corrugated washer, inner and outer plates, installing in clutch housing: see Corrugated washer, inner and outer plates, installing in clutch housing .
