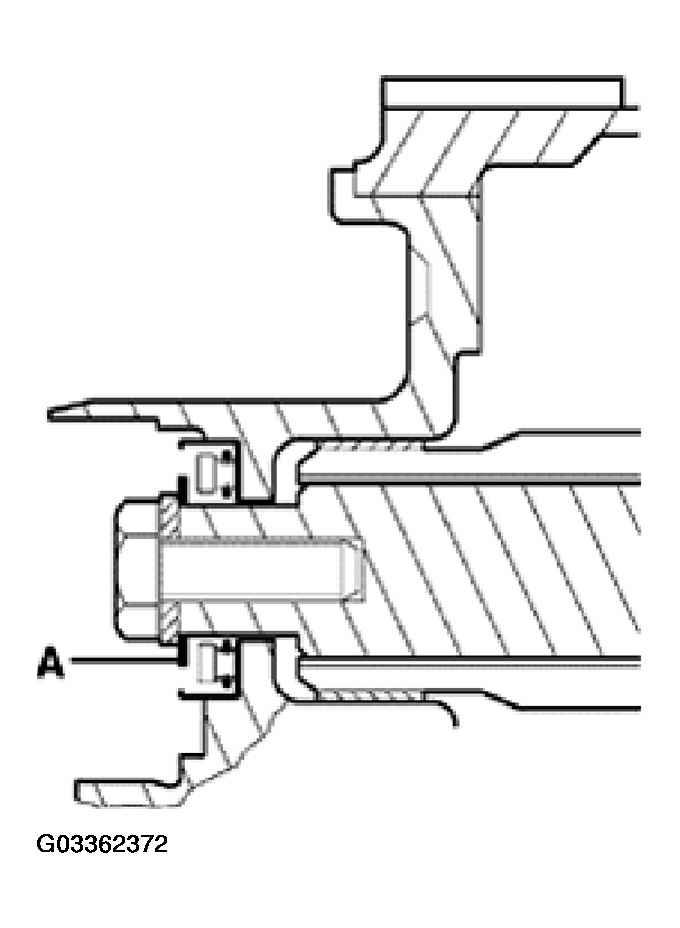

Shim -A-, determining

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install all components (items -2- through -16-) into transmission housing to adjust planet carrier, see PLANET CARRIER, ADJUSTING .

Fig 1: Measuring Planet Carrier Shim Thickness

Courtesy of VOLKSWAGEN OF AMERICA, INC.

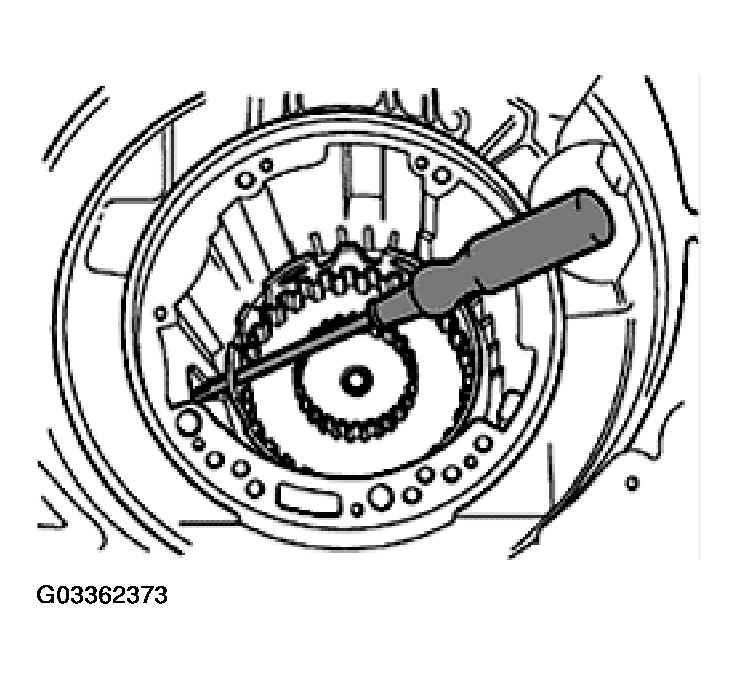

Insert screwdriver through hole of large sun gear to loosen and tighten bolt for small input shaft.

Fig 2: Inserting Screwdriver Through Hole Of Large Sun Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

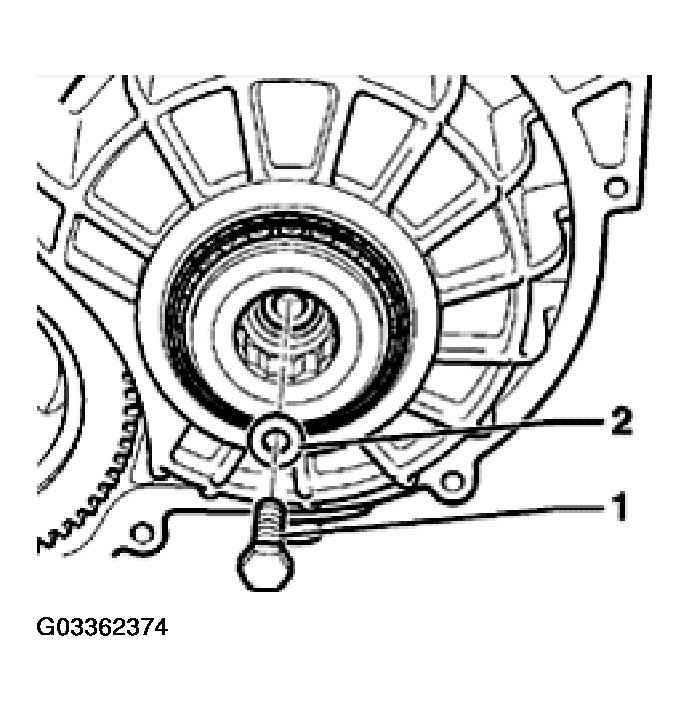

Install small input shaft bolt -1- with washer -2- but without shim. Tightening torque: 30 N.m (22 ft lb).
Install dial gauge in VW 382/7

Fig 3: Installing Small Input Shaft Bolt With Washer

Courtesy of VOLKSWAGEN OF AMERICA, INC.

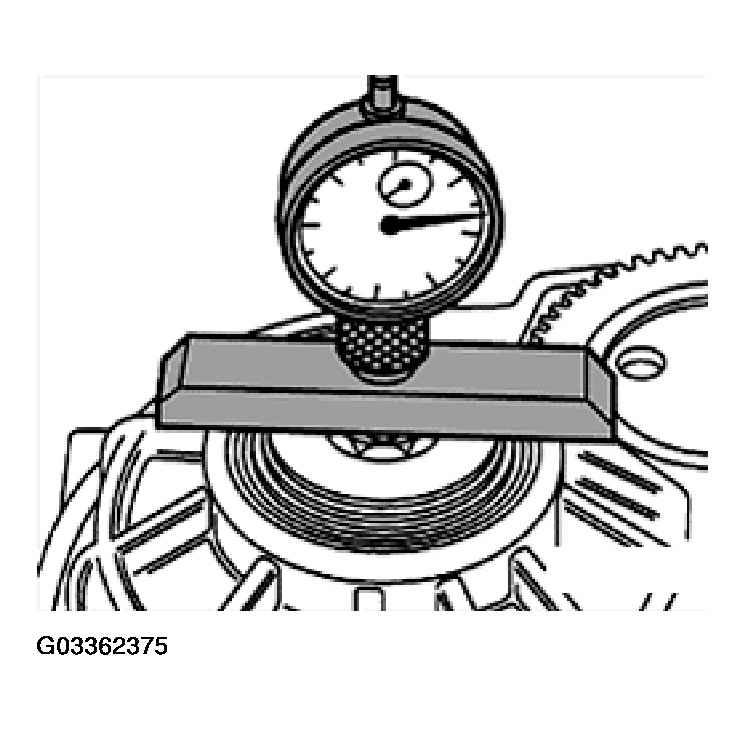

Adjust dial gauge with top of gauge positioned on bolt head center with 1 mm preload.

Fig 4: Adjusting Dial Gauge With Top Of Gauge Positioned On Bolt Head Center
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Zero dial gauge.
Move small input shaft up and take reading.
Example: Reading 2.00 mm
Specify thickness of shim according to table and determine Part No.
