Planet carrier, adjusting: Example:

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Measured value 2.00 mm

Insert 1.7 mm thick shim.

Remove small input shaft bolt.
Insert correct shim -3- on small input shaft -arrow-.

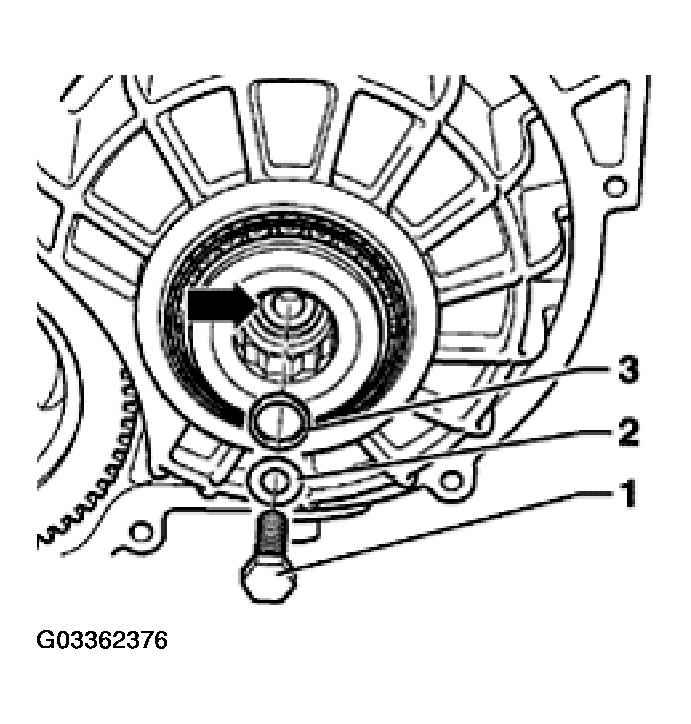

Fig 1: Inserting Correct Shim On Small Input Shaft
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Tighten small input shaft bolt -1- with washer -2-.
Tightening torque 30 N.m (22 ft lb).
Perform planet carrier measurement.
