II - Reverse gear clutch -K2- to large sun gear, removing and installing
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
For an overview, see TRANSMISSION, DISASSEMBLING AND ASSEMBLING, OVERVIEW
NOTE:
- Transmission, disassembling, see TRANSMISSION, DISASSEMBLING
- Transmission, assembling, see TRANSMISSION, ASSEMBLING

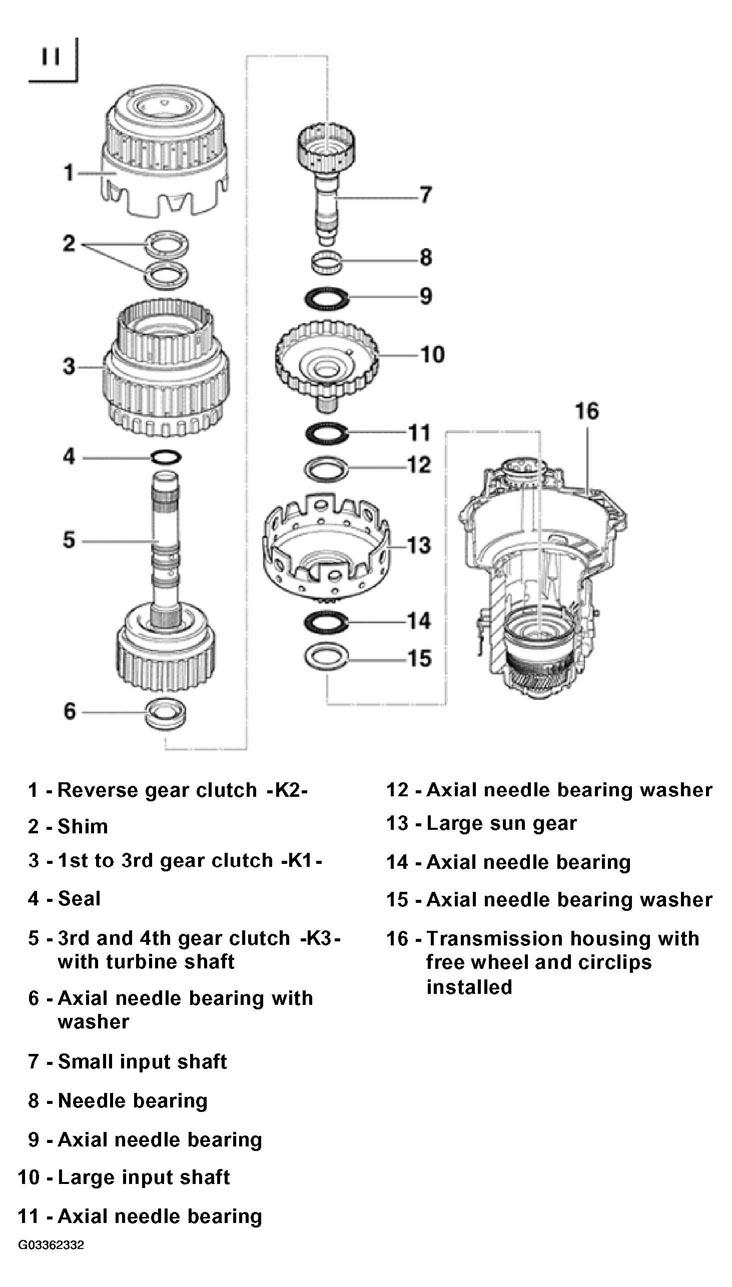

The following list pertains to Fig 1.
- Reverse gear clutch -K2-
- Disassembling and assembling, see TRANSMISSION, DISASSEMBLING AND ASSEMBLING
- Shim
- Determining thickness, see CLUTCH PLAY BETWEEN -K1- AND -K2-, ADJUSTING
- 1 or 2 shims can be installed
- 1st to 3rd gear clutch -K1-
- Disassembling and assembling, see TRANSMISSION, DISASSEMBLING AND ASSEMBLING
- Seal
- Always replace
- 3rd and 4th gear clutch -K3- with turbine shaft
- Disassembling and assembling, see TRANSMISSION, DISASSEMBLING AND ASSEMBLING
- Axial needle bearing with washer
- Axial needle bearing faces toward small input shaft
- Small input shaft
- Needle bearing
- Axial needle bearing
- Large input shaft
- Axial needle bearing
- Axial needle bearing washer
- With shoulder
- Large sun gear
- Axial needle bearing
- Axial needle bearing washer
- Transmission housing with free wheel and circlips installed
