Clutch play between -K1- and - K2-, adjusting: Notes
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To adjust clutch play, install components without shim -6-: see TRANSMISSION, ASSEMBLING .

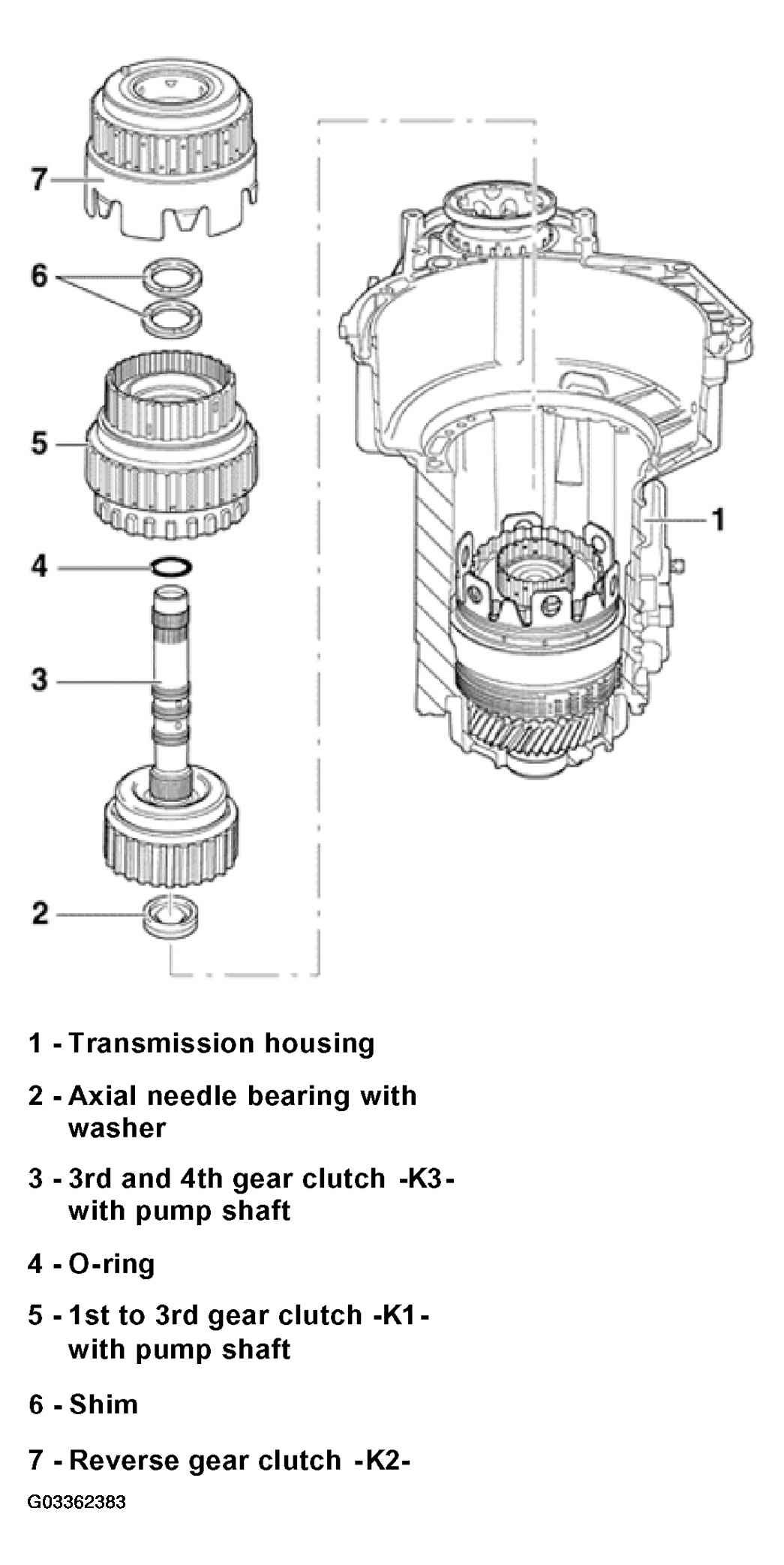

The following list pertains to Fig 1.
- Transmission housing
- Transmission installed up to small input shaft: see TRANSMISSION, ASSEMBLING .
- Axial needle bearing with washer
- Axial needle bearing faces toward small input shaft
- Washer faces toward -K3-
- 3rd and 4th gear clutch -K3- with pump shaft
- O-ring
- 1st to 3rd gear clutch -K1- with pump shaft
- Shim
- Do not install when adjusting clutch play
- 1 or 2 shims can be installed
- Reverse gear clutch -K2-
