Clutch play measurement, checking

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The clutch play cannot be measured until the ATF pump has been installed.
Attach dial gauge holder to transmission housing and place dial gauge on turbine shaft with a preload of 1 mm.
Move turbine shaft up and down and read play on dial gauge.
Play:

min. = 0.5 mm

max. = 1.2 mm

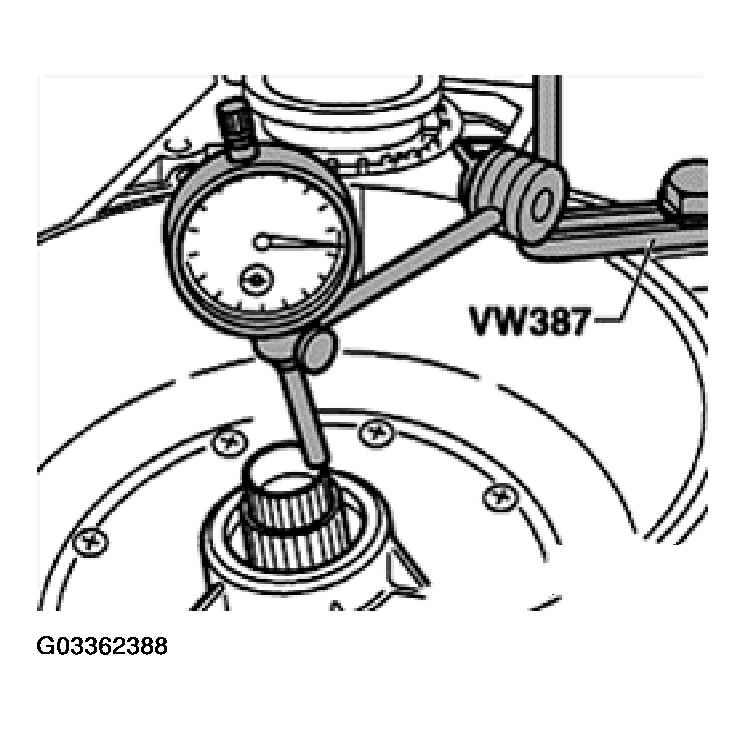

Fig 1: Measuring Clutch Play (Clutch Play Between -K1- and - K2-)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
