ATF cooler and ATF filler tube, removing and installing

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1.

Banjo bolt
- 35 N.m (26 ft lb)
O-ring
- Always replace
ATF cooler
O-ring
- Always replace
Transmission housing
Seal
- Always replace
Seal
- Always replace
Plug
Cap
- To secure ATF level plug after checking ATF level: see ATF LEVEL, CHECKING AND TOPPING UP
- Always replace
ATF filler tube
O-ring
- Always replace

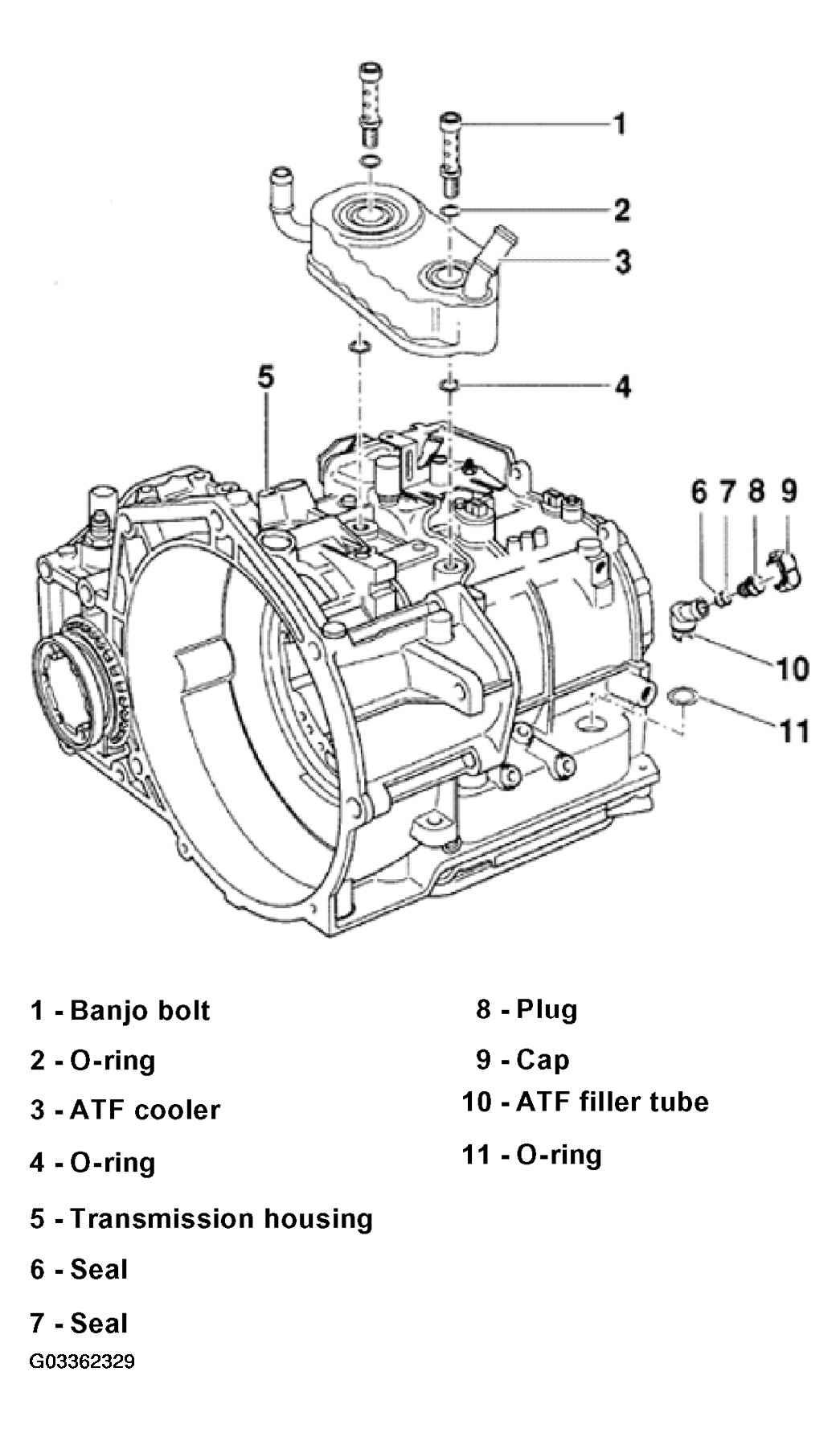

Fig 1: Exploded View Of ATF Cooler And ATF Filler Tube Components

Courtesy of VOLKSWAGEN OF AMERICA, INC.
