Table of "Shims":
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
SHIM THICKNESS (2ND AND 4TH GEAR BRAKE B2- WITH SHIM AND RETAINING RING)
| Gap "x" (mm) | Shims (mm) |
|---|---|
| 3.25 ... 3.50 3.51 ... 3.75 3.76 ... 4.00 4.01 ... 4.25 4.26 ... 4.50 4.51 ... 4.75 4.76 ... 5.00 5.01 ... 5.25 5.26 ... 5.50 5.51 ... 5.75 5.76 ... 6.00 |
1.00 1.25 1.50 1.75 1.00 + 1.00 1.00 + 1.25 1.25 + 1.25 1.25 + 1.50 1.50 + 1.50 1.50 + 1.75 1.75 + 1.75 |
- Select shim(s) according to table and determine Part No. from parts catalogue.
In this example two shims must be installed (each 1.00mm thick).
- Insert three spring caps on compression springs.
- Insert last outer plate -3 mm thick-.

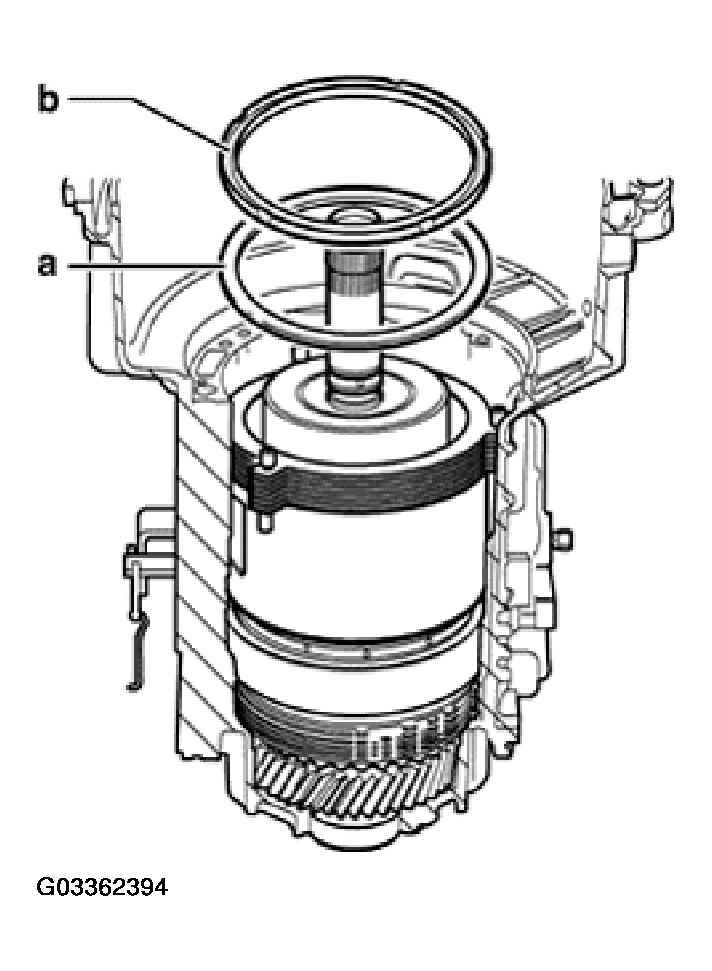

- Install correct shim(s) -a-.
- Place retaining ring -b- on shim(s). Smooth side facing shim.
- Continue installation as described: see TRANSMISSION ADJUSTMENTS, OVERVIEW .
