Dimension "b", calculating :

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Push piston into ATF pump to stop.
Place new paper gasket on ATF pump.

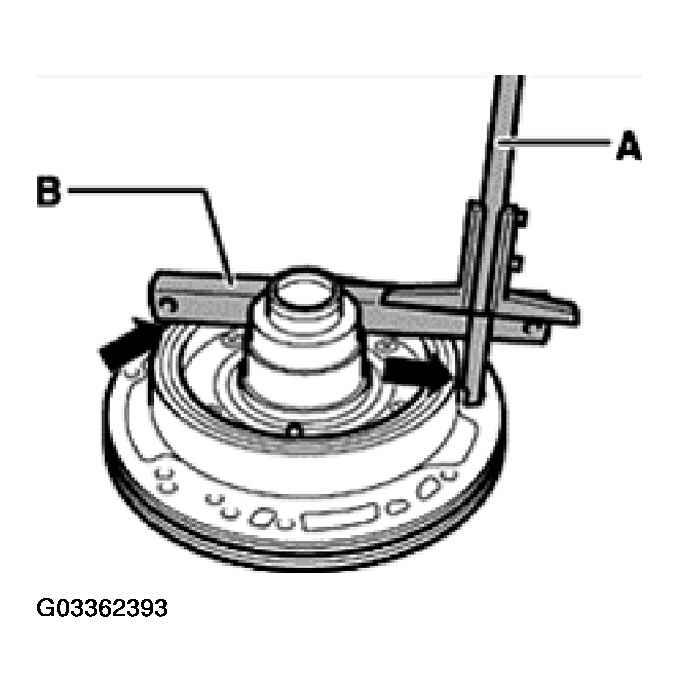

Place straightedge "B" onto stator support -arrow- and measure with depth gauge "A" to gasket of pump flange.

Fig 1: Measuring With Depth Gauge A To Gasket Of Pump Flange

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Example:

CALCULATING DIMENSION B (2ND AND 4TH GEAR BRAKE B2 - WITH SHIM AND RETAINING RING)

Reading - Straightedge	= =	39.8 mm - 19.5 mm
Calculated size b	=	20.3 mm

Gap x = a - b - 2.5 mm

Gap x = 27.3 - 20.3 - 2.65 = 4.35 mm

Determine size of shim(s) according to table:
