Transmission with selector elements: Notes
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Position of selector elements

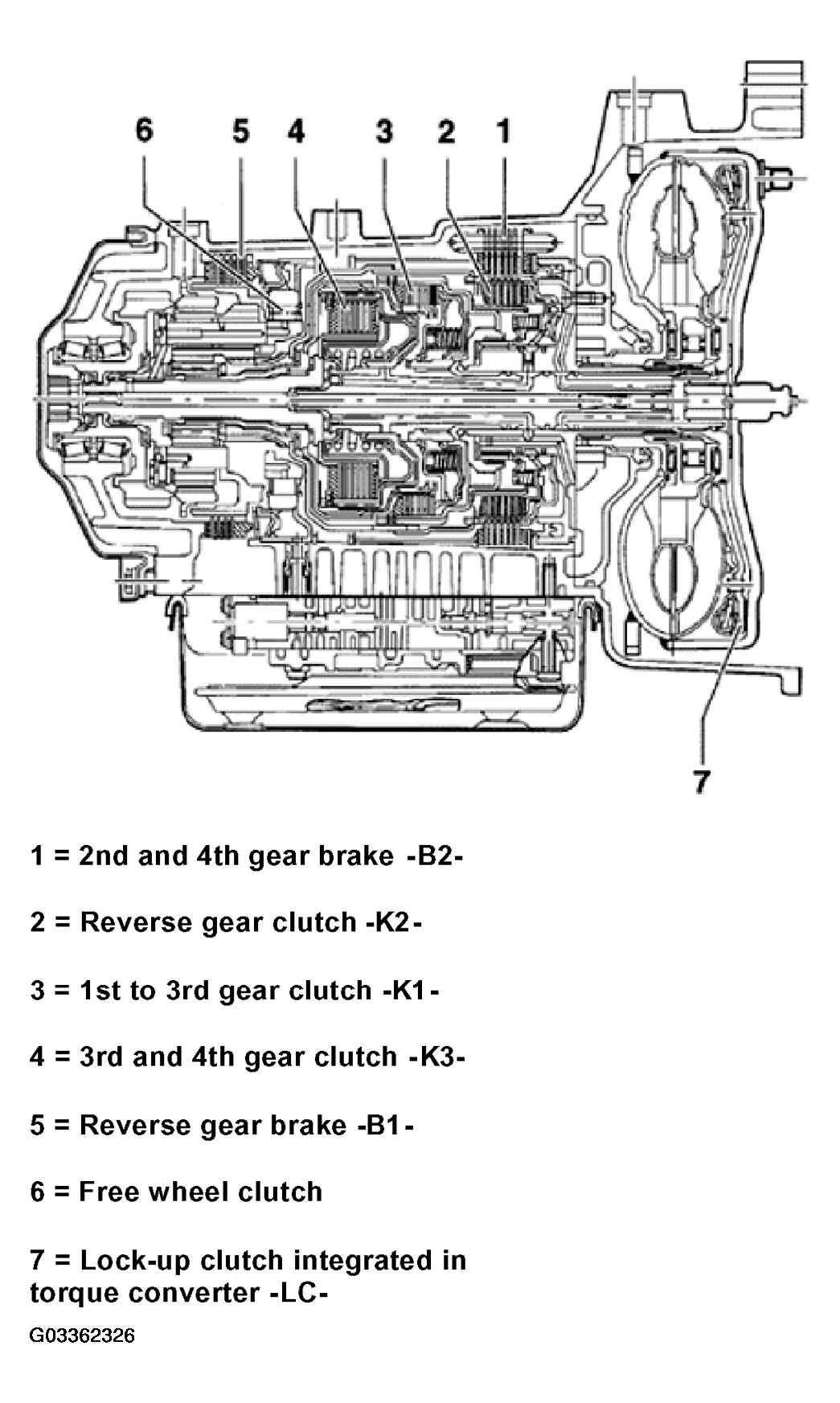

The following list pertains to Fig 1.
- = 2nd and 4th gear brake -B2-
- = Reverse gear clutch -K2-
- = 1st to 3rd gear clutch -K1-
- = 3rd and 4th gear clutch -K3-
- = Reverse gear brake -B1-
- = Free wheel clutch
- = Lock-up clutch integrated in torque converter -LC-
Before starting transmission repairs, first check for Diagnostic Trouble Codes (DTC) using On Board Diagnostic (OBD).
