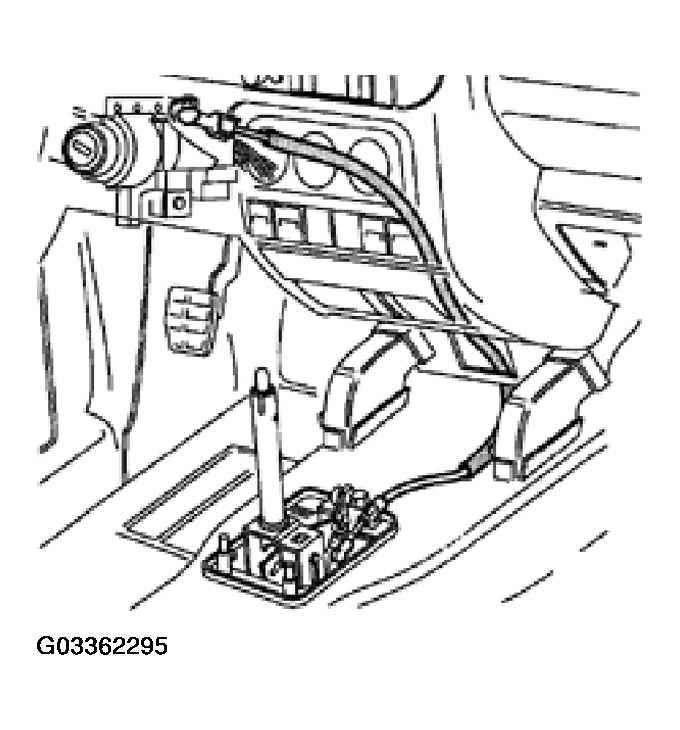

Installation position of locking cable

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Shift selector lever into "1" position.
Turn ignition key to right (starting position) and release.

Fig 1: Adjusting Locking Cable

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Adjust clearance to 0.7 mm between lever -1- and locking pin -2- by sliding locking cable casing.
- Dimension a 0.7 mm
Tighten locking cable anchorage screw in this position to 6 N.m (53 in. lb).
Shift selector lever into "P" position and turn ignition key to end position.
Pull out ignition key.
- It must only be possible to remove ignition key in this selector lever position.
- Selector lever cannot be shifted out of "P" position.

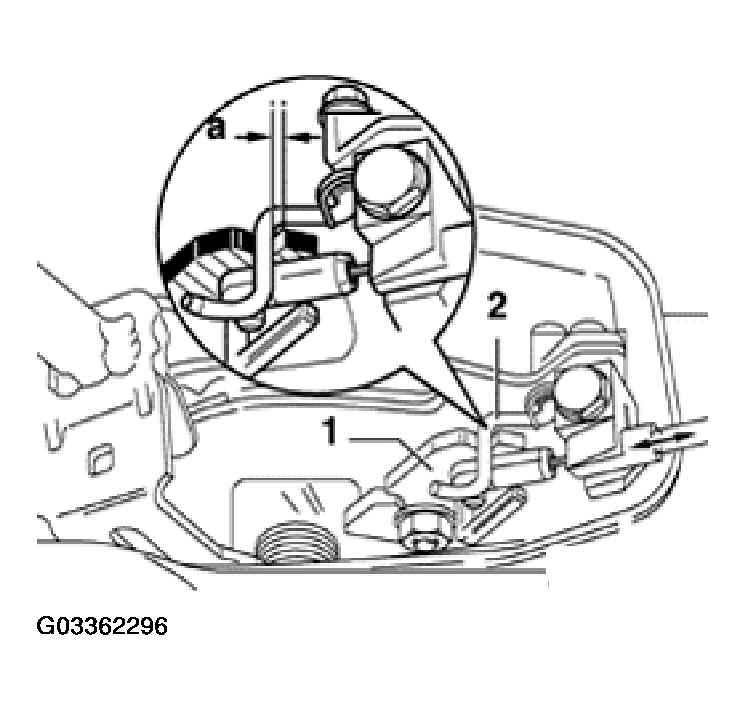

Fig 2: Adjusting Clearance Between Lever And Locking Pin

Courtesy of VOLKSWAGEN OF AMERICA, INC.
