Main Pressure, measuring
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Before measuring the main pressure activate the Diagnostic Trouble Code (DTC) Memory and eliminate possible electrical malfunctions.
See ON BOARD DIAGNOSTIC (OBD), PERFORMING .

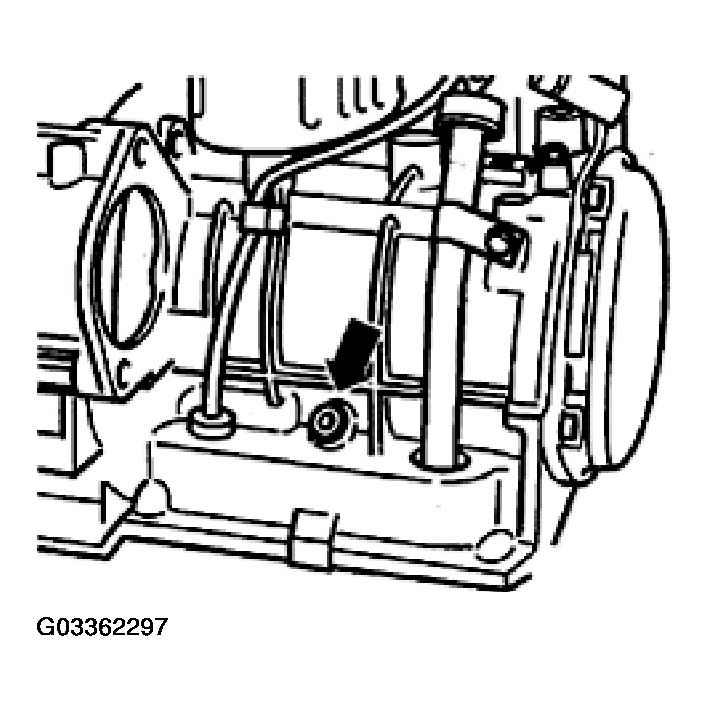

See connector for pressure manometer (arrow).
- Remove bolt for main pressure tapNOTE: Always replace bolt for main pressure tap.
- Connect pressure tool VAG 1702 or equivalent and tighten knurled screw.
- Vent pressure tool line VAG 1702 by loosening the knurled screw with engine running.NOTE: Re-tighten knurled screw after ventilation.
- Bring ATF temperature to 60 C (140 F) by connecting VAG 1551 Scan Tool and reading measuring value block.
See VAG 1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTIONS .
Min. Pressure Specified value in bar (psi) gauge pressure:
MAIN PRESSURE SPECIFICATION VALUESAutomatic Transmission Selector lever positions and test conditions 01M D
IdleR
IdleConnector for solenoid valves removed (1) D
Engine speed
approx. 2000 rpmR
Engine speed
approx. 2000 rpmMain pressure in bar (psi) 3.4 - 3.8 (49 - 55) 6.5 - 7.5 (94 - 109) 10.1 -11.3 (146 - 164) 23.0 - 24.0 (334 - 348) (1) After connecting the connectors for solenoid valves, activate Diagnostic Trouble Code (DTC) Memory and erase. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 5). - If possible, conduct the main pressure check on a chassis dynamometer (rolling road).
If deviations to the specified values are observed the following may be the cause:
MAIN PRESSURE TROUBLESHOOTINGPossible Cause Remedy Idle rpm too high Adjust engine ATF-Pump faulty Check ATF Pump and replace if necessary Valve stuck in valve body Replace valve body
