Only if ATF in overflow line runs out of hole
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

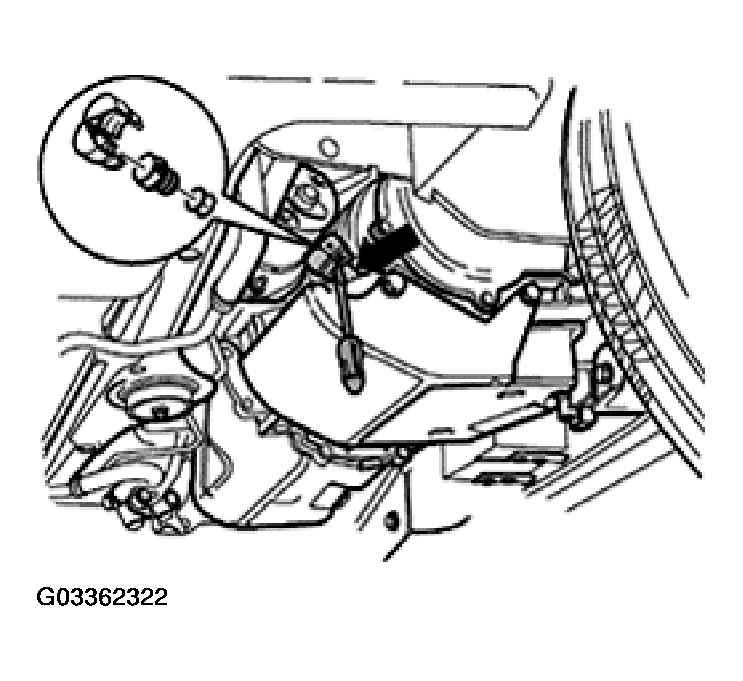

- Remove plug protective cap -arrow- with a screwdriver. As cap will be damaged, always replace cap.
- Remove plug from filler line.NOTE: Some transmissions have a cap with a spring retainer. A cap with a spring retainer can be used again.

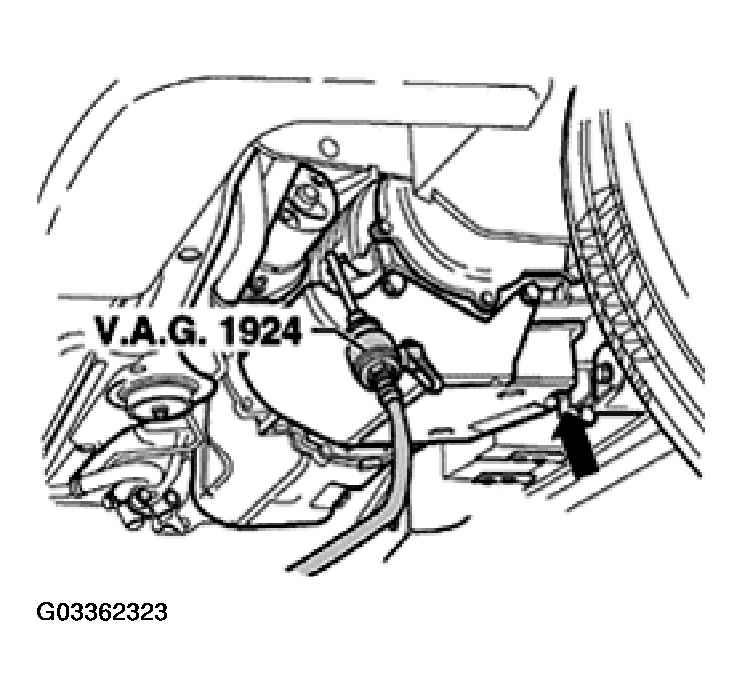

- Fill with ATF using VAG 1924 until ATF runs out of level plug hole -arrow-.CAUTION: Too little or too much ATF will adversely affect transmission function.

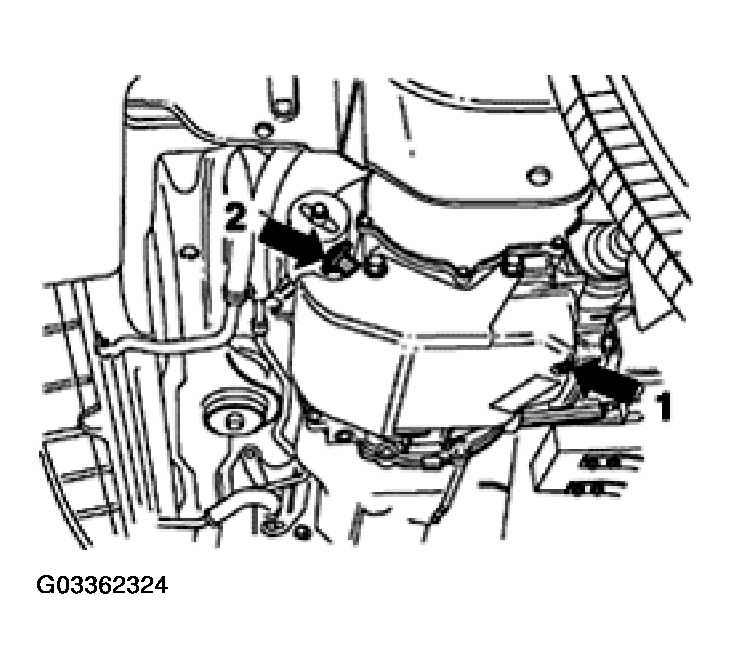

- Install new seal to level plug -arrow 1 - and tighten to 15 N.m (11 ft lb).
- Install plug on filler pipe until spring retainer lock locates, or
- Install plug on filler pipe and secure with new cap -arrow 2-.
- Lock cap.NOTE: Always replace protective caps without spring retainers. The cap secures the plug.
