Checking conditions

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Transmission not in emergency run mode, ATF temperature not above approx. 30°C (86 °F)
Vehicle level
Selector lever in "P"

Attach VAG 1924 ATF filling system reservoir to vehicle.
Connect VAG 1551 Scan Tool and enter address word "02 Transmission electronics." Advance until "Select function XX" indicated on display.
See VAG 1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTIONS .

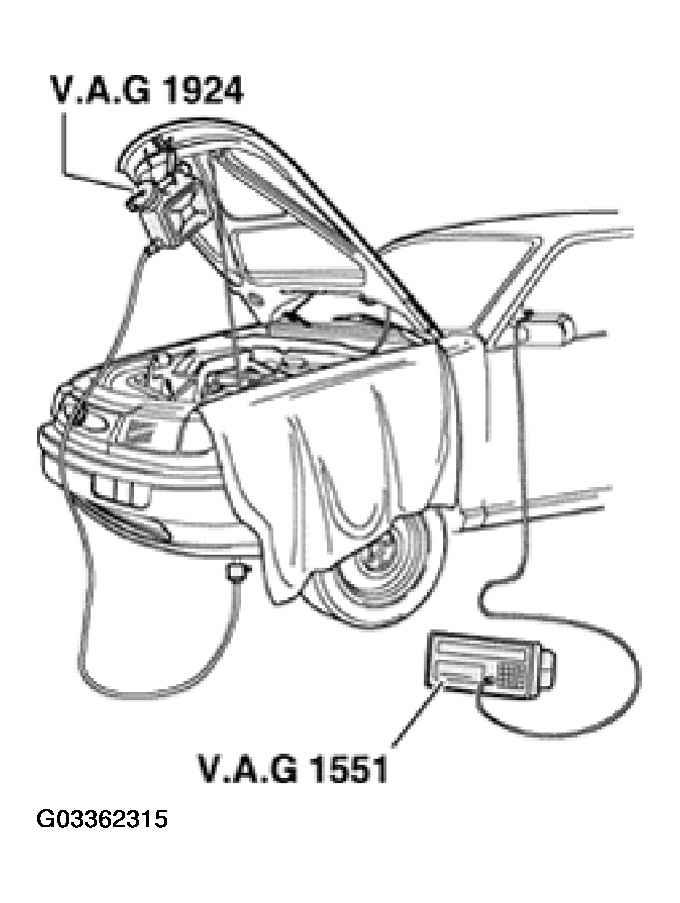

Fig 1: Attaching VAG 1924 ATF Filling System Reservoir To Vehicle

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Start engine.
Raise vehicle.
Place container under transmission.
Indicated on display:

Fig 2: Identifying Scan Tool Display (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Press buttons -0- and -8- to select function 08, Read measuring value block.
Indicated on display:

Fig 3: Identifying Scan Tool Display (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Press -Q- button to confirm entry.
Indicated on display:
- Press buttons -0- and -5- to select function 05, Display group number.
- Press -Q- button to confirm entry.
Indicated on display:

Fig 4: Identifying Scan Tool Display (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

First display field shows ATF temperature.

Fig 5: Identifying Scan Tool Display (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Bring ATF to test temperature.
