Ribbed drive belt, removing and installing (vehicles with VR6 engine): Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove Evaporative Emission (EVAP) canister purge regulator valve -N80- with retaining ring from Air Cleaner (ACL) lower housing.

Refer to EVAPORATIVE EMISSIONS (EVAP) SYSTEM .

Remove Air Cleaner (ACL) housing complete with Mass Air Flow (MAF) sensor -G70-.

For vehicles up to 1995, refer to AIR CLEANER (ACL), MASS AIR FLOW (MAF) SENSOR AND POSITIVE CRANKCASE VENTILATION (PVC) HEATING ELEMENT, REMOVING AND INSTALLING .

For vehicles from 1996 and on, refer to AIR CLEANER (ACL), MASS AIR FLOW (MAF) SENSOR AND POSITIVE CRANKCASE VENTILATION (PVC) HEATING ELEMENT, REMOVING AND INSTALLING. .

Screw bolt M8 x 80 into threaded hole -A- of tension roller just until ribbed belt can be removed.

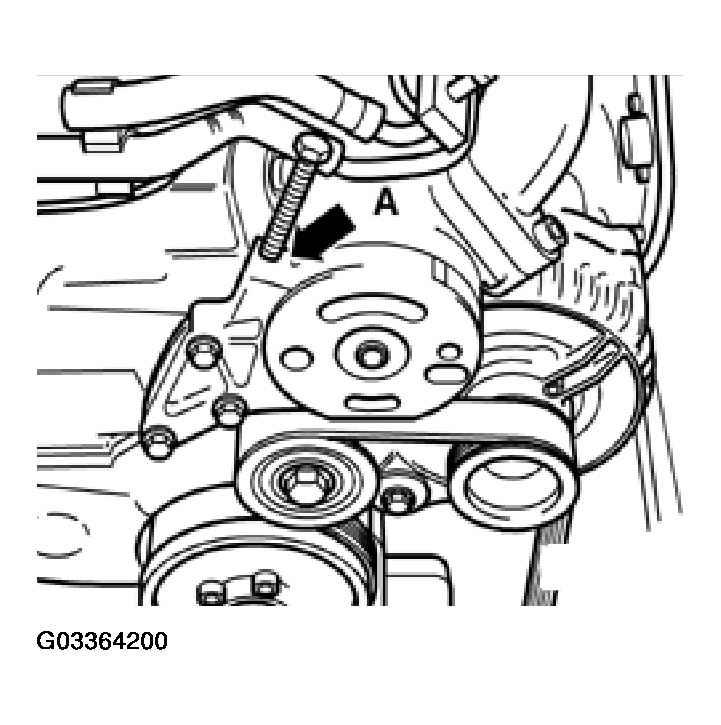

Fig 1: Screwing Bolt M8 X 80 Into Threaded Hole Of Tension Roller (Vehicles With VR6 Engine)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION:

ONLY screw bolt into tension roller far enough to remove belt.
Screwing the bolt into the tension roller too far can damage the tension roller cover.

Remove ribbed belt.
