Ribbed drive belt, removing and installing (vehicles with VR6 engine): Installing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before installing ribbed belt, ensure that all assemblies with rollers and/or pulleys on which the belt must ride are tightly mounted. Movement of the ribbed belt will not be controlled if travel is not correct over all rollers and pulleys.

Install ribbed belt.

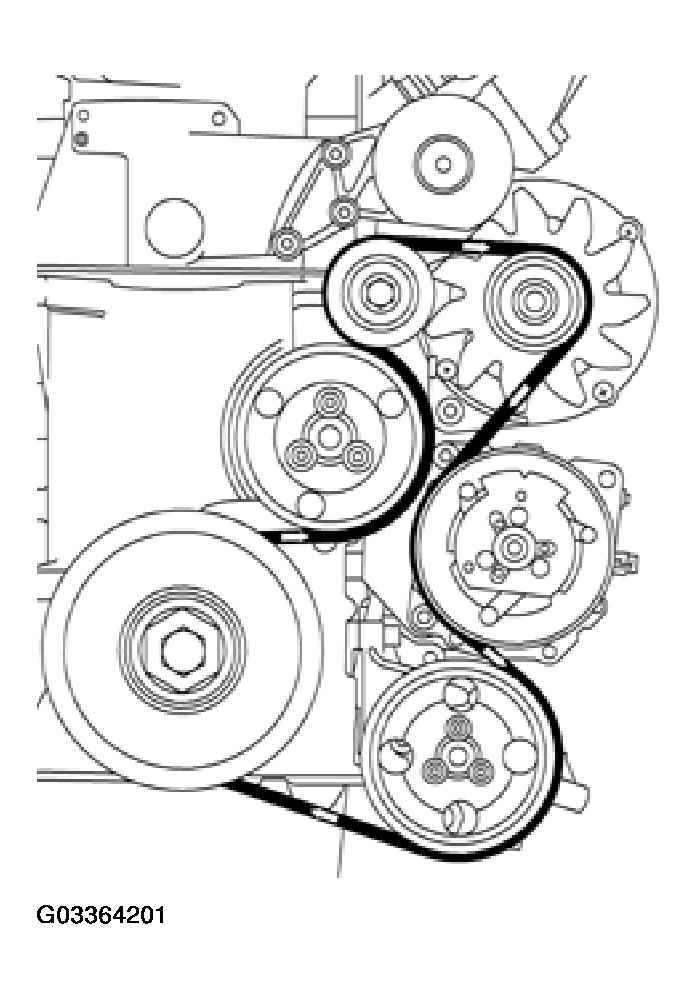

Fig 1: Installing Ribbed Belt (Vehicles With VR6 Engine)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove M8 x 80 bolt from tension roller.
Install Air Cleaner (ACL) housing complete with Mass Air Flow (MAF) sensor -G70-.

For vehicles up to 1995, refer to AIR CLEANER (ACL), MASS AIR FLOW (MAF) SENSOR AND POSITIVE CRANKCASE VENTILATION (PVC) HEATING ELEMENT, REMOVING AND INSTALLING .

For vehicles from 1996 and on, refer to AIR CLEANER (ACL), MASS AIR FLOW (MAF) SENSOR AND POSITIVE CRANKCASE VENTILATION (PVC) HEATING ELEMENT, REMOVING AND INSTALLING. .

Install Evaporative Emission (EVAP) canister purge regulator valve -N80- with retaining ring onto Air Cleaner (ACL) lower housing.

Refer to EVAPORATIVE EMISSIONS (EVAP) SYSTEM .

Start engine and check belt travel.

NOTE: Vehicles with A/C are equipped with a double ribbed belt.
