4-cylinder gasoline and diesel engines with power steering, without A/C

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1.

- Mounting bracket
- Nut M8
- 30 N.m (24 ft lb)
- Generator (GEN)
- Checking. Refer to GENERATOR TROUBLESHOOTING .
- Carbon brushes, checking. Refer to GENERATOR (GEN), SERVICING
- Voltage Regulator (VR)
- When replacing, remove and install items 7, 6 and 5
- Carbon brushes, checking. Refer to GENERATOR (GEN), SERVICING
- Phillips-head screws M4 x 25
- Cover
- Bolts M3
- Ribbed belt
- Routing and sizes: For gasoline engine, refer to Figure. For diesel engine, refer to Figure.
- Routing notes. Refer to RIBBED BELTS AND V -BELTS, ROUTING AND SIZES
- Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING (VEHICLES WITH 4-CYL. ENGINE)
- Sleeve M8
- Internally threaded
- Tensioning spring
- Bolt M8 x 39
- 25 N.m (18 ft lb)
- Bolt M8 x 85
- 25 N.m (18 ft lb)

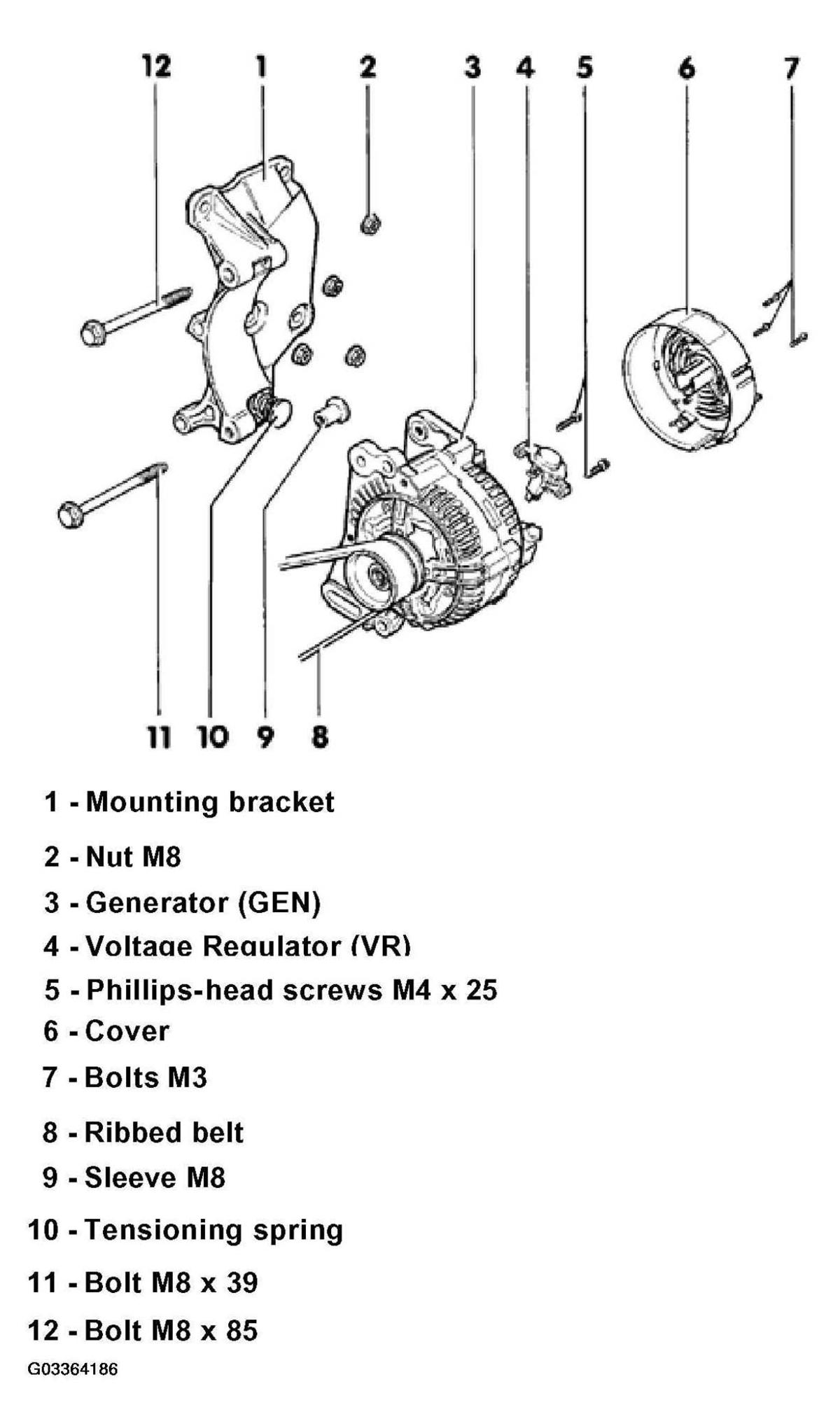

Fig 1: Identifying Generator Components Of 4-Cylinder Gasoline And Diesel Engines With Power Steering (Without A/C)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
