Battery, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The latest generation batteries are equipped with a central gas venting system and a fine mesh flame trap -arrow-.

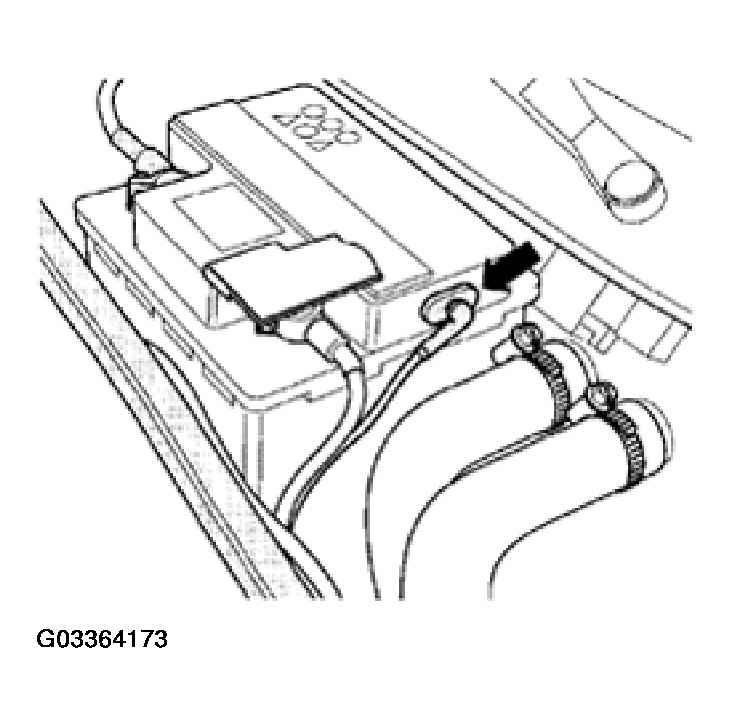

Fig 1: Locating Central Gas Venting System And Fine Mesh Flame Trap

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Function: Gases produced during charging escape through a central opening on side of upper cover. A flame trap is integrated into the this position which prevents the flammable gases in the battery from igniting.
It is extremely important to check that the hose is connected to the central gas venting system and that it has not been disconnected while installing. Only then can the battery vent via the fine mesh flame trap and hose.
The flame trap is comprised of a small round fiberglass mat with a diameter of 15 mm and a thickness of 2 mm. It works on a similar principle to a valve therefore it allows the gases produced in the battery to vent.

Position battery and seat lower lip -1- in clamping strip, as shown.
Retain other lip of battery at battery securing pedestal -4- using hold -down -2- and M8 x 25 bolt -3-.
Tighten bolt -3- to 20 N.m (15 ft lb).
Connect battery positive (+) cable and negative (-) cable or Ground (GND) strap.

Tightening torque (terminal clamping bolt): 5 N.m (44 in lb)

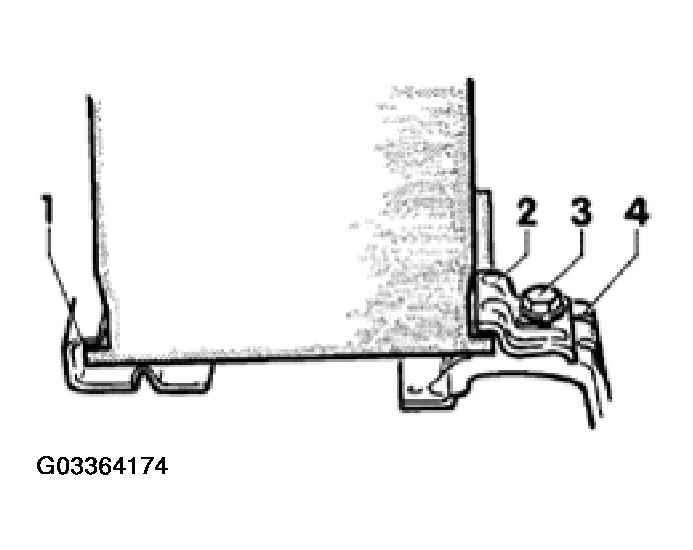

Fig 2: Installing Battery Hold Down Nut And Clamp

Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION: If the battery is not secured properly, normal shock and vibration can damage the battery plates, which result in premature battery failure.

NOTE:

Battery terminal clamps must only be fitted by hand without force in order to prevent damage to the battery housing.
Battery terminals must no longer be greased.
After reconnecting battery:

Activate vehicle equipment such as radio, clock and power windows as per Repair Manual and/or Owner's Manual.
On vehicles equipped with OBD II, activate readiness code

Refer to appropriate ON BOARD DIAGNOSTIC (OBD) article.
