VAG 1551 Scan Tool (ST), connecting, selecting functions and checking control module (radio) version: Connecting

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

With ignition switched off, connect VAG 1551 Scan Tool (ST) with adapter cable VAG 1551/3 to the Data Link Connector (DLC) as follows:

Open ashtray and remove, then slide cover for Data Link Connector (DLC) to left -arrow-.
Connect Scan Tool using adapter cable VAG 1551/3.

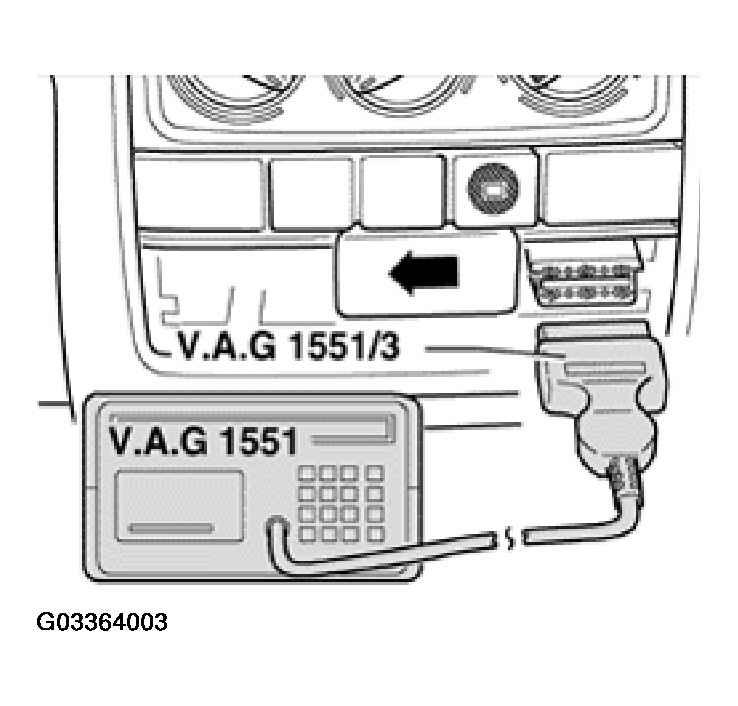

Fig 1: Connecting VAG 1551 Scan Tool To Data Link Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

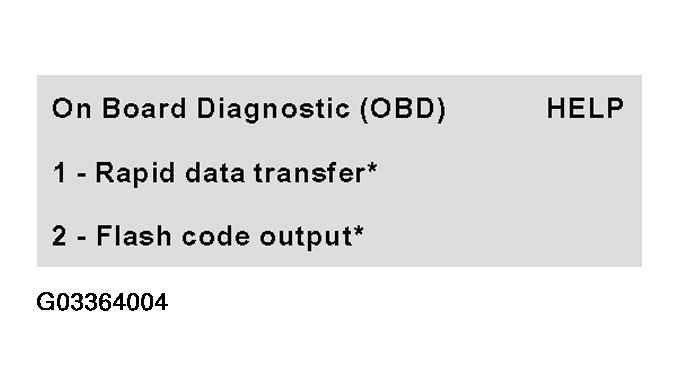

Fig 2: Identifying VAG 1551 Scan Tool Display (Rapid Data Transfer)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

* Is displayed alternately
