Output Diagnostic Test Mode (DTM), initiating

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Output Diagnostic Test Mode (DTM) cannot be initiated, or will be interrupted if engine is running or vehicle is moving,
Use the -C- button to exit the test sequence at any time.

Connect VAG 1551 Scan Tool (ST), input address word 56 "Radio" and then press -->button, until "Select function XX" is shown in display. See VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS AND CHECKING CONTROL MODULE (RADIO) VERSION .

Indicated on display (select function):

Fig 1: Identifying VAG 1551 Scan Tool Display (Rapid Data Transfer)

G03364019

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -3- to select function 03 "Output Diagnostic Test Mode (DTM)".

Indicated on display

Fig 2: Identifying VAG 1551 Scan Tool Display (Output Diagnostic Test Mode (DTM))

G03364020

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press -Q- button to confirm input.

Indicated on display

Fig 3: Identifying VAG 1551 Scan Tool Display (Speaker)

G03364021

Courtesy of VOLKSWAGEN OF AMERICA, INC.

A short, loud tone emits

Press --> button.

Indicated on display:

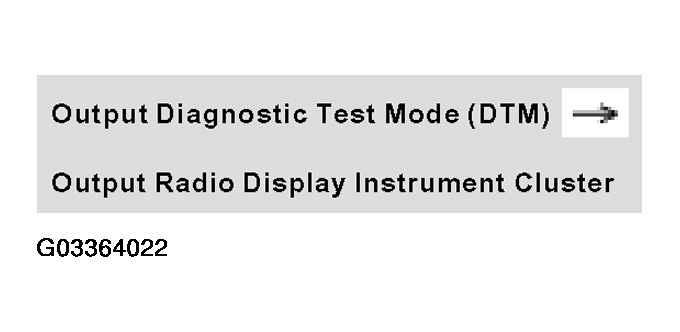

Fig 4: Identifying VAG 1551 Scan Tool Display (Output Radio Display Instrument Cluster)

G03364022

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> button.

Indicated on display:

Fig 5: Identifying VAG 1551 Scan Tool Display (End)

G03364023

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> button.

Indicated on display (select function):

Fig 6: Identifying VAG 1551 Scan Tool Display (Rapid Data Transfer)

G03364024

Courtesy of VOLKSWAGEN OF AMERICA, INC.

End output (function 06). See END OUTPUT (FUNCTION 06) .
