On Board Diagnostic (OBD), initiating: Notes

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and equipment

VAG1551 Scan Tool (ST) or VAG1552 mobile scan tool or
VAS5051 tester

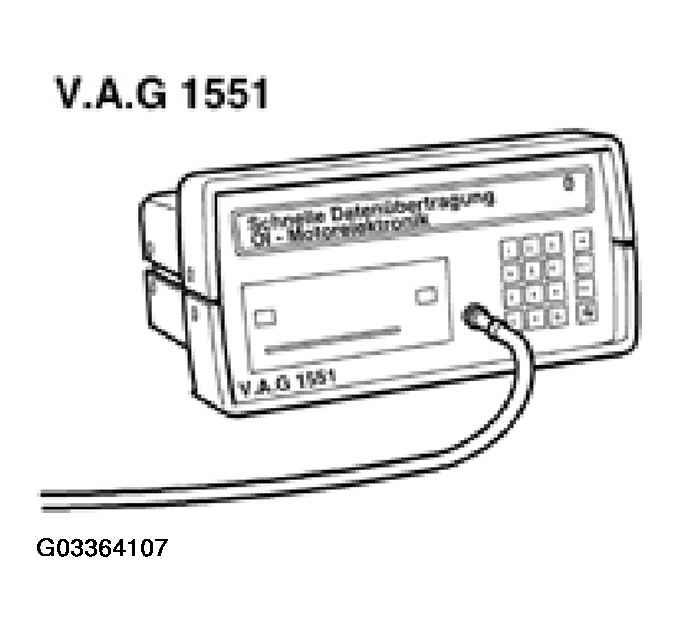

Fig 1: Identifying VAG 1551 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.
VAG1551/3 or 1551/3A adapter cable

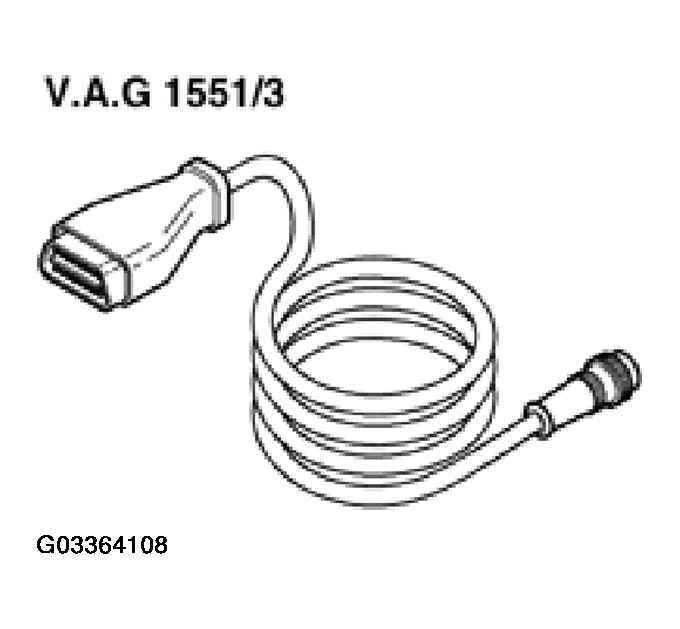

Fig 2: Identifying VAG 1551/3 Scan Tool Adapter Cable

Courtesy of VOLKSWAGEN OF AMERICA, INC.

When malfunctions occur in monitored sensors or components, Diagnostic Trouble Codes (DTCs) are stored in DTC memory with a description of the malfunction type.

A maximum of 4 malfunctions can be stored simultaneously.

Sporadically occurring malfunctions are erased if they do not occur again within 50 start procedures.

To begin troubleshooting, initiate On Board Diagnostic (OBD) and read out stored data using the

VAS 5051 tester or

VAG1551 Scan Tool (ST) or

VAG1552 mobile Scan Tool (ST).

NOTE: The following description refers only to the VAG1551 Scan Tool (ST).

The indicated diagnostic data relates to a DTC table with notes regarding potential malfunction causes and specific repair procedures.
