Coding control module

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Insert key in ignition lock.
Connect VAG 1551 Scan Tool, select operating mode 1 "Rapid data transfer", switch on ignition and enter address word 25 "Immobilizer".

After displaying the control module identification.

Press --> button.

Indicated on display:

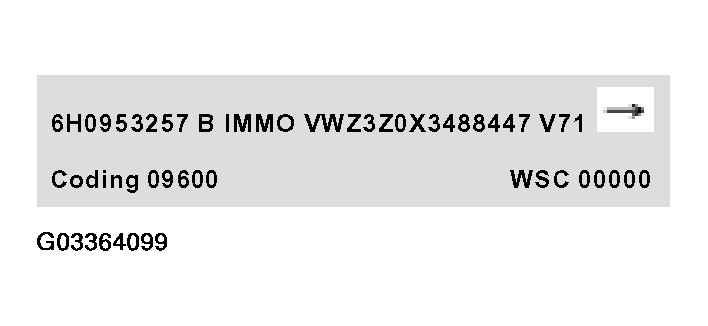

Fig 1: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Coding Control Module) (Select Function XX)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -7-. (Code control module" is selected with 07.)

Indicated on display:

Fig 2: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Coding Control Module) (07 Code Control Module)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

Fig 3: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Coding Control Module) (Enter Code Number)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Enter code number with keys:

09600 - Gas engine

Entry correction with -C- button possible.

Indicated on display (if 09600 has been entered):

Fig 4: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Coding Control Module) (Enter Code Number 09600)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

Fig 5: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Coding Control Module) (Coding Example)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> button.

Indicated on display:

Fig 6: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Coding Control Module) (Select Function XX)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Transfer speed in Immobilizer Control Module is matched after exiting diagnosis.
