Removing and installing fresh air/heating controls

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Install control cables to the control head before installing the control head, refer to FRESH AIR/HEATING CONTROL CABLES, INSTALLING AND ADJUSTING (WITHOUT A/C) .

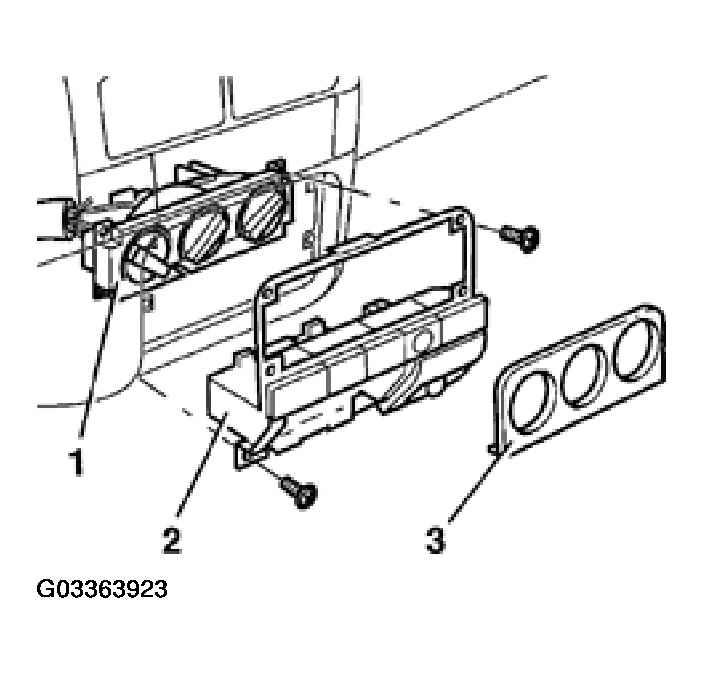

Fig 1: Removing Fresh Air/Heating Controls
G03363923Courtesy of VOLKSWAGEN OF AMERICA, INC.
