Removing and installing fresh air blower series resistance with fuse -N24- (without A/C)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect harness connectors from series resistance -N24-.
Squeeze locking tabs and remove series resistance.
NOTE: When installing, if the locking tabs do not engage, fasten the series resistance unit with a self-tapping screw through the mounting hole (arrow).

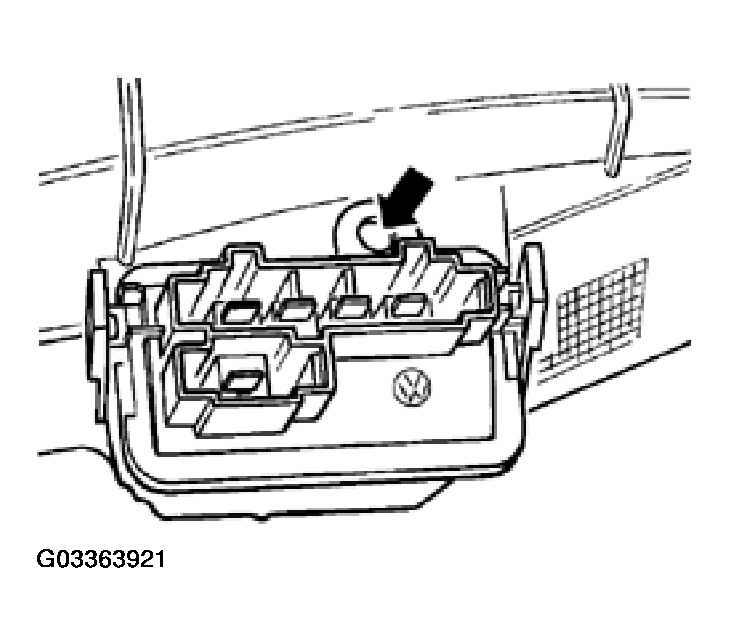

Fig 1: Removing Fresh Air Blower Series Resistance With Fuse N24 (Without A/C)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Install in reverse order of removal.
