Test procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Set ventilation control knobs as shown in Fig 1:

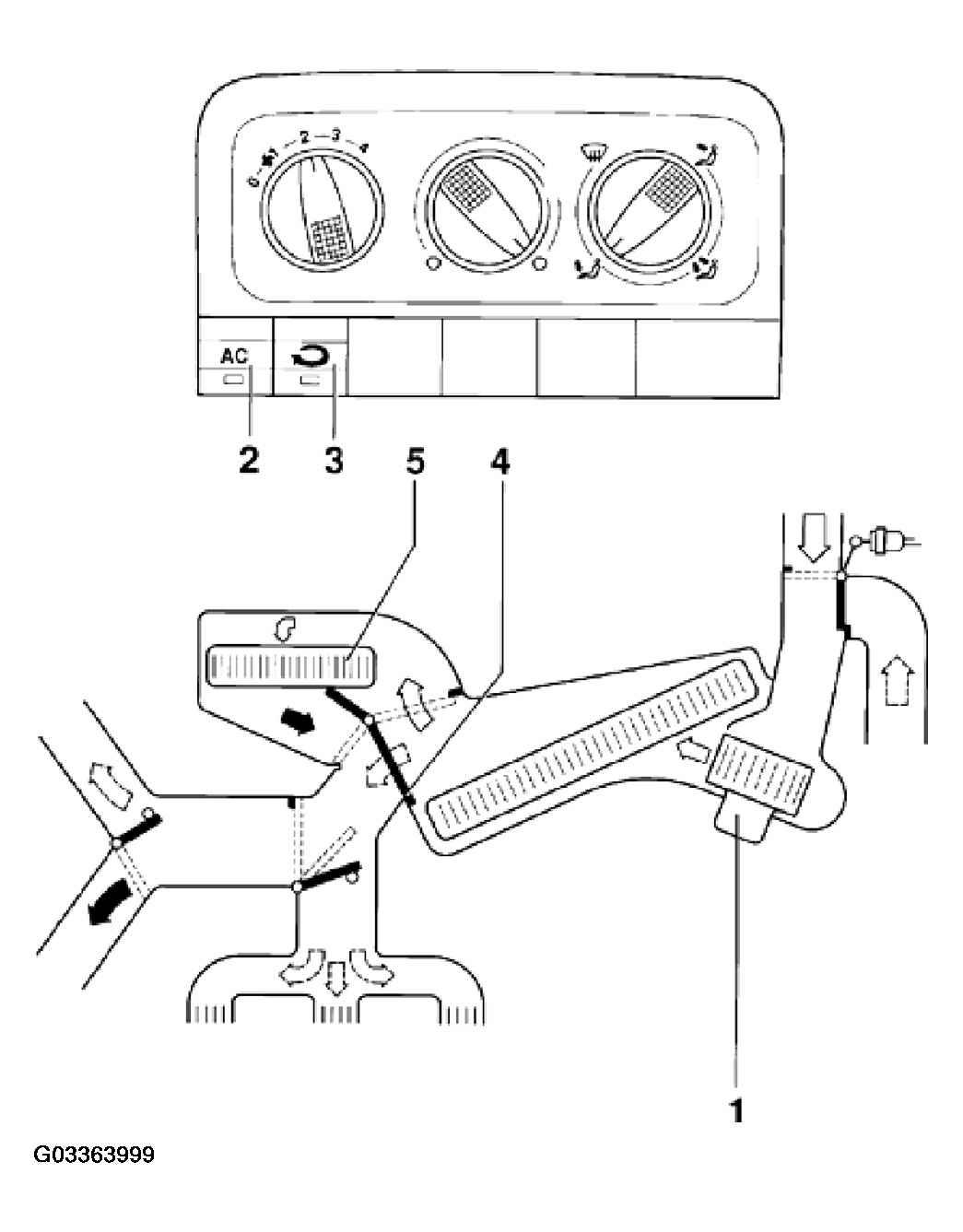

Fig 1: A/C System Operation Troubleshooting - Insufficient Or No Heat Output (From 1994 M.Y.)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- A/C switch -E35 - (-2-) OFF
- Fresh air/recirculating flap switch -E159- (-3-) OFF
  Check components and specified functions using following table:

INSUFFICIENT OR NO HEAT OUTPUT (FROM 1994 M.Y.)

Components	Specified function and check	Remedy if specified function not obtained
4 - Temperature flap	Temperature flap -4- must make audible contact when temperature control knob (center) is turned back and forth to full "cold" position	Adjust temperature flap control cable
5 - Heater core	Warm	Check engine cooling system thermostat, see appropriate Cooling System (Mechanical) article in ENGINES.
