Test procedure
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Open instrument panel air vents -13 -.

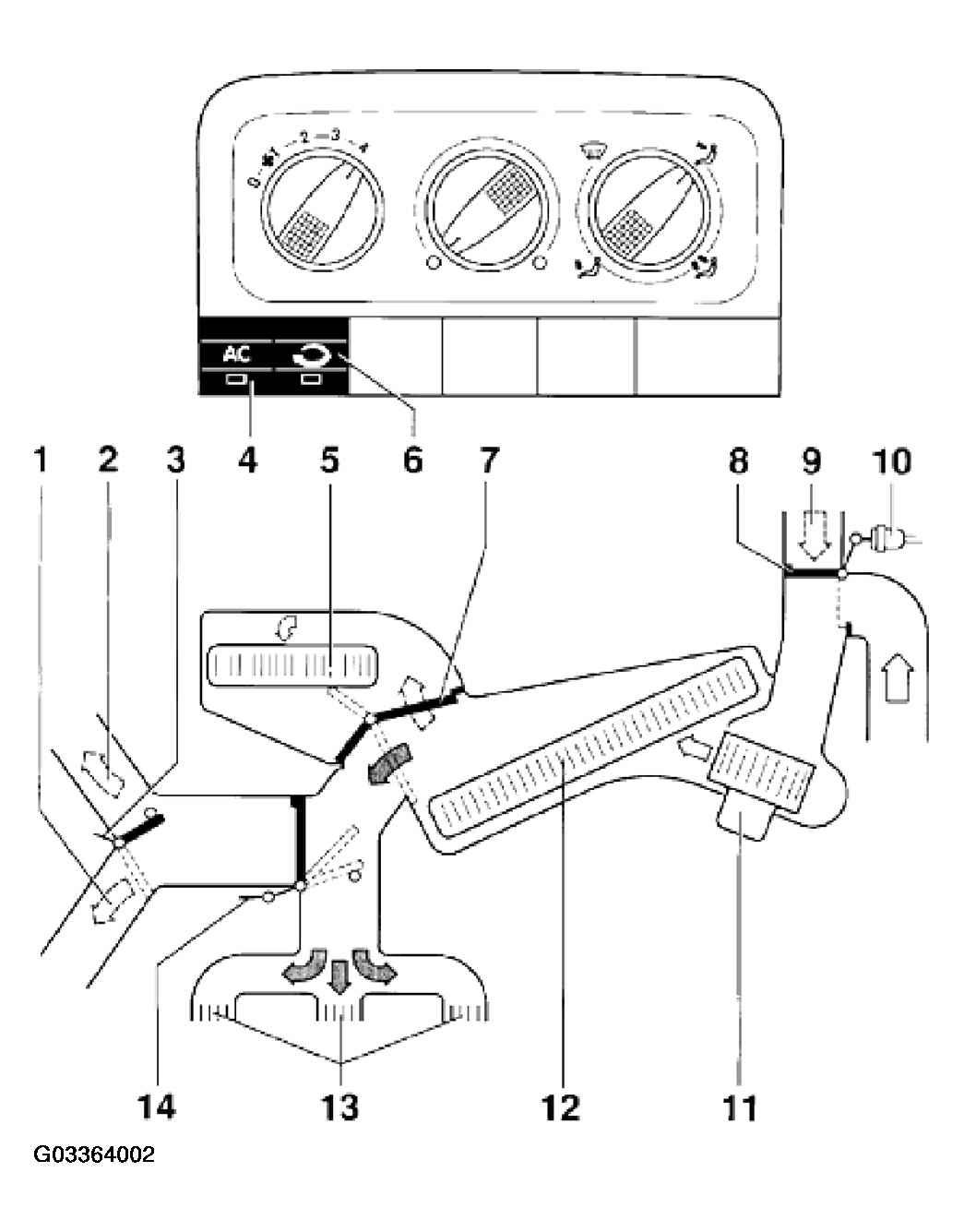

- Set ventilation control knobs as shown in Fig 1:
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- A/C switch -E35- (-4-) ON
- Fresh air/recirculating flap switch -E159- (-6-) ON
Check components and specified functions using INSUFFICIENT A/C COOLING OUTPUT (FROM 1994 M.Y.) - 1 OF 2 table:
INSUFFICIENT A/C COOLING OUTPUT (FROM 1994 M.Y.) - 1 OF 2Components Specified function and check Remedy if specified function not obtained 7 - Temperature flap - Temperature flap -7- must make audible contact when temperature control knob (center) is turned back and forth to full "cold" position (Air flow through heater core -5- blocked)
- Adjust temperature flap control cable
3 - Footwell/defrost flap - No air flow from defroster or footwell vents (-2-,-1-)
- Adjust control cables
- Gear on A/C control head faulty, replace A/C control head
14 - Central flap - No air flow from defroster vents -2-
- No air flow from footwell vents -1-
- Adjust control cables
- Gear on A/C control head faulty, replace A/C control head
INSUFFICIENT A/C COOLING OUTPUT (FROM 1994 M.Y.) - 2 OF 2Components Specified function and check Remedy if specified function not obtained 8 - Fresh air/recirculating flap - Fresh air inlet -9- blocked (system operating in recirculating air mode)
- Vacuum servo -10- retracted (vacuum applied)
- Check fresh air/recirculating flap two-way valve -N63- according to wiring diagram
- Check vacuum hoses and connections, refer to VACUUM HOSE LAYOUT
- Check fresh air/recirculating flap switch -E159- according to wiring diagram
- Once above tested components check OK, check A/C system cooling performance, refer to A/C system cooling performance, checking
