Test procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Open instrument panel vents -4-.
Start engine.
Set ventilation control knobs as shown in Fig 1:
A/C switch -E35- (-1-) ON
Check components and specified functions using A/C DOES NOT COOL - EVAPORATOR AND A/C LINES AT AMBIENT TEMPERATURE (FROM 1994 M.Y.) table:

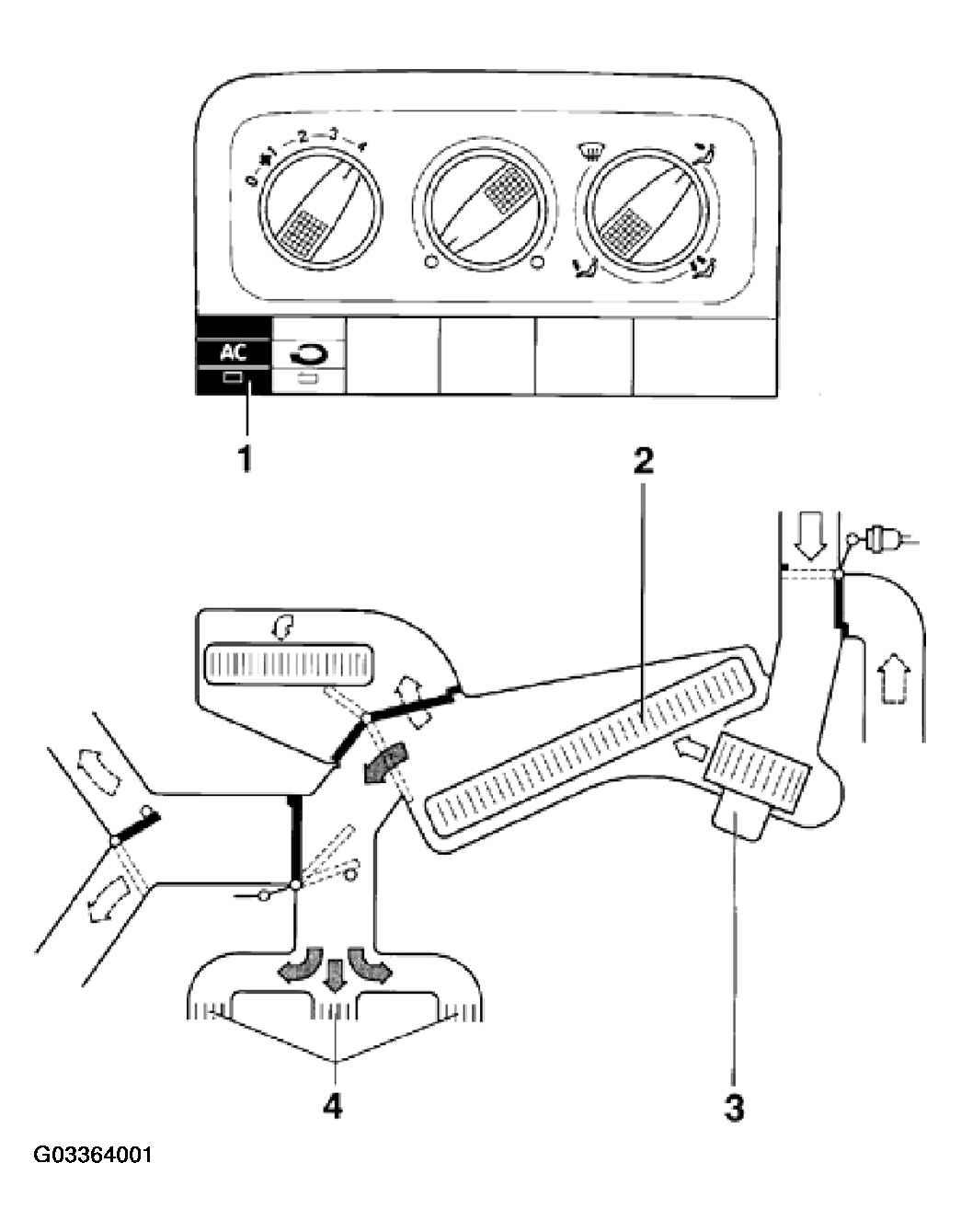

Fig 1: A/C System Operation Troubleshooting: A/C Does Not Cool - Evaporator And A/C Lines At Ambient Temperature (From 1994 M.Y.)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

A/C DOES NOT COOL - EVAPORATOR AND A/C LINES AT AMBIENT TEMPERATURE (FROM 1994 M.Y.)

Components

Specified function and check

Remedy if specified function not obtained

3 - A/C switch - E35-

With engine OFF and ignition switched ON, A/C clutch -N25- must audibly click when A/C switch -E35- is pressed repeatedly

Check A/C pressure switch -F129-, refer to FUNCTIONS
Locate malfunction using wiring diagram⁽¹⁾

⁽¹⁾	If A/C clutch -N25- does not click ON and voltage is present (at least 9.5 V) at A/C clutch connector, A/C clutch -N25- is faulty.
