Test procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Start engine.
Set ventilation control knobs as shown in Fig 1.

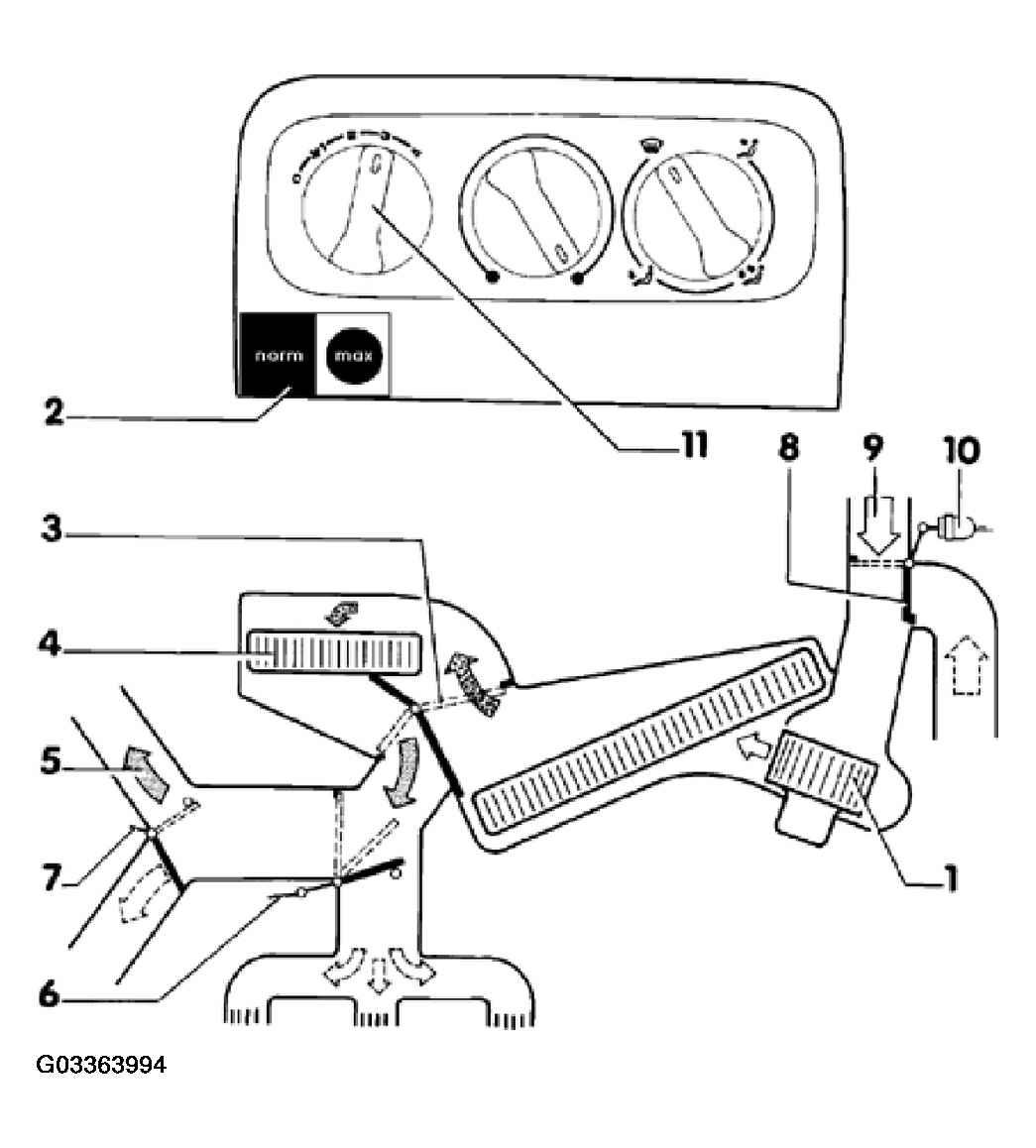

Fig 1: A/C System Operation Troubleshooting - Windows Do Not Clear In Defrost Mode (1993 M.Y.)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

A/C switch -E35 - ON
"Norm" button -2- pressed

Check components and specified functions using WINDOWS DO NOT CLEAR IN DEFROST MODE (1993 M.Y.) table:

WINDOWS DO NOT CLEAR IN DEFROST MODE (1993 M.Y.)

Components	Specified function and check	Remedy if specified function not obtained
3 - Temperature flap	Cooled air flows through heater core -4-. Temperature flap -3- must make audible contact when temperature control knob (center) is turned back and forth to full "cold" position	Adjust temperature flap control cable
4 - Heater core	Coolant hoses warm	Check engine cooling system thermostat, see appropriate Cooling System (Mechanical) article in ENGINES.
5 - Defroster vents	Luke-warm air flows from defroster vents	Adjust central flap control cable and footwell/defrost flap control cable
8 - Fresh air/recirculating flap,	Fresh air inlet -9- open (arrow)	Check vacuum system
8 - Fresh air/recirculating flap,	Vacuum servo -10- extended (no vacuum applied)	Check fresh air/recirculating flap two-way valve -N63- according to wiring diagram Check fresh air blower switch -E9- according to wiring diagram
