Test procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Switch fresh air blower switch -E9- to "0" (OFF) position.

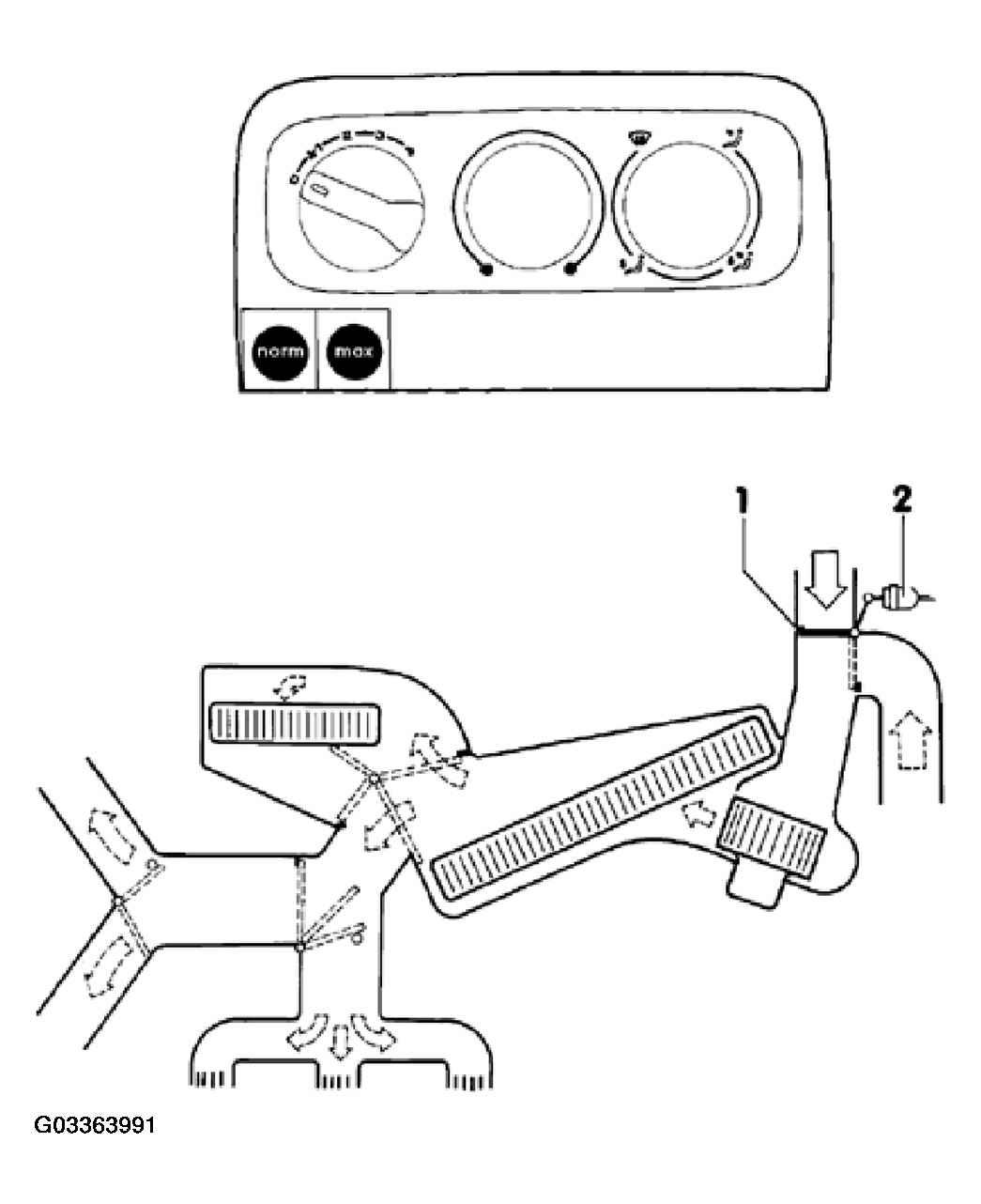

Fig 1: A/C System Operation Troubleshooting - Fresh Air Cannot Be Shut Off (1993 M.Y.)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: The position of the other two ventilation control knobs does not affect fresh air cut-off.

Check components and specified functions using table FRESH AIR CANNOT BE SHUT OFF (1993 M.Y.) :

FRESH AIR CANNOT BE SHUT OFF (1993 M.Y.)

Components	Specified function and check	Remedy if specified function not obtained
1 - Fresh air/recirculating flap	Fresh air inlet (arrow) closed to outside air	Check fresh air/recirculating flap two -way valve -N63- according to wiring diagram
1 - Fresh air/recirculating flap	Vacuum servo -2- retracted (vacuum applied)	Check vacuum hoses and connections according to vacuum hose layout, refer to VACUUM HOSE LAYOUT
