Test procedure

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Open instrument panel vents -1-.
Start engine.
Set ventilation control knobs as shown in Fig 1.

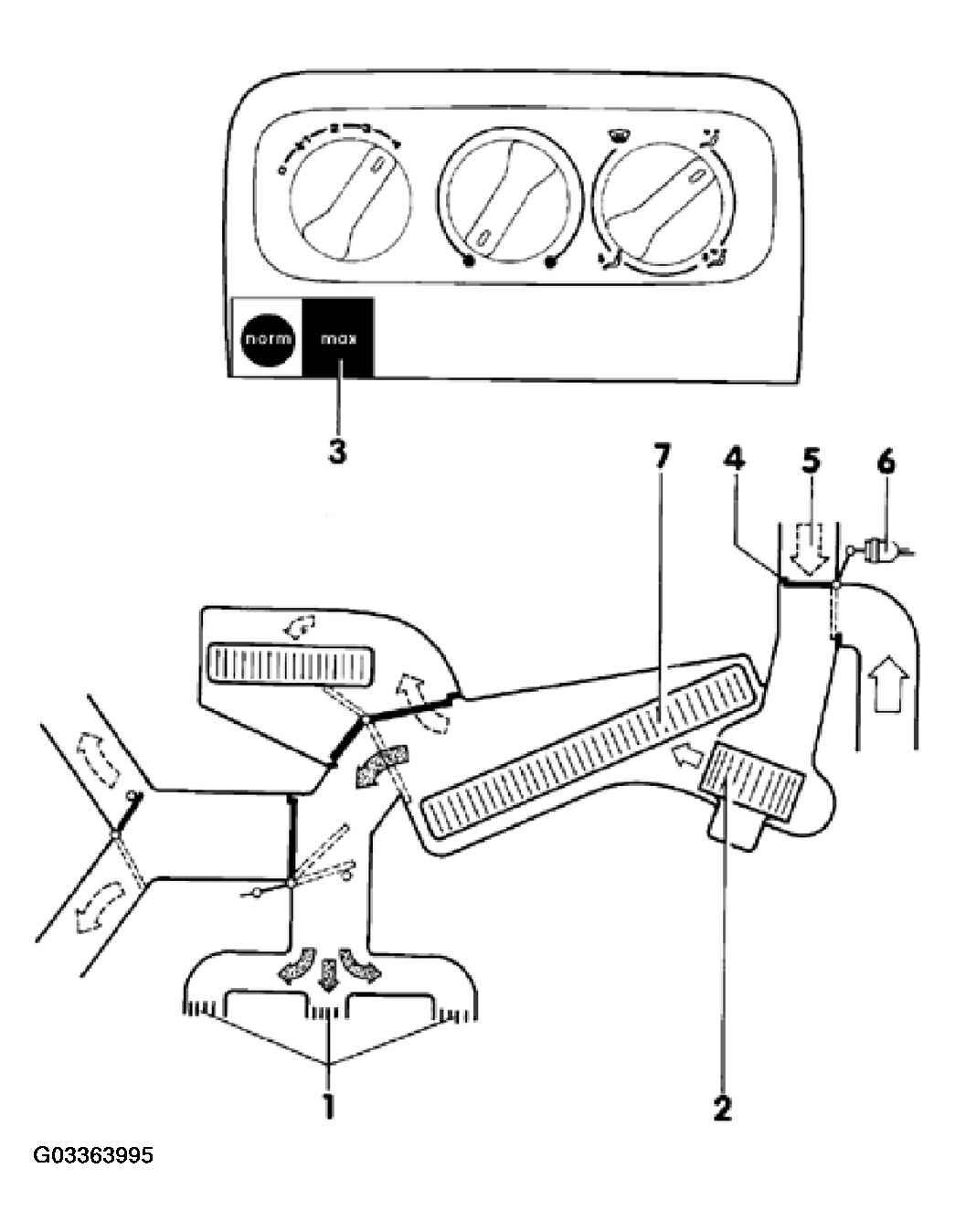

Fig 1: A/C System Operation Troubleshooting: A/C Does Not Cool - Evaporator And A/C Lines At Ambient Temperature (1993 M.Y.)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- A/C switch -E35 - ON
- "Max" button -3- pressed
  Check components and specified functions using A/C DOES NOT COOL - EVAPORATOR AND A/C LINES AT AMBIENT TEMPERATURE (1993 M.Y.) table:

A/C DOES NOT COOL - EVAPORATOR AND A/C LINES AT AMBIENT TEMPERATURE (1993 M.Y.)

Components

Specified function and check

Remedy if specified function not obtained

4 - Fresh air/recirculating flap

Fresh air inlet -5- closed to outside air (system operating in recirculating air mode)

Check fresh air/recirculating flap two-way valve - N63- according to wiring diagram

Vacuum servo -6- retracted (vacuum applied)

Check vacuum hoses and connections according to vacuum hose layout, refer to VACUUM HOSE LAYOUT

3 - A/C Switch -E35-

With engine off and ignition switched on, A/C clutch -N25- must audibly click when "Max." button is pressed repeatedly

Check A/C pressure switch -F129-, refer to FUNCTIONS
Locate malfunction using wiring diagram⁽¹⁾

⁽¹⁾

Remove 4-point connector from A/C pressure switch -F129- and electrically bridge terminals 1 and 2 of connector. If A/C clutch -N25- clicks ON, system is empty (no refrigerant). If A/C clutch -N25- does not click ON and voltage is present (at least 9.5 V) at A/C clutch connector, A/C clutch - N25- is faulty.
