Refrigerant circuit

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Evaporator
  2. - Expansion valve
  3. - High-pressure service valve
  4. - Sight glass (if equipped)
  5. - Receiver drier
  6. - Condenser
  7. - Compressor
    NOTE: Arrows indicate flow direction of refrigerant.

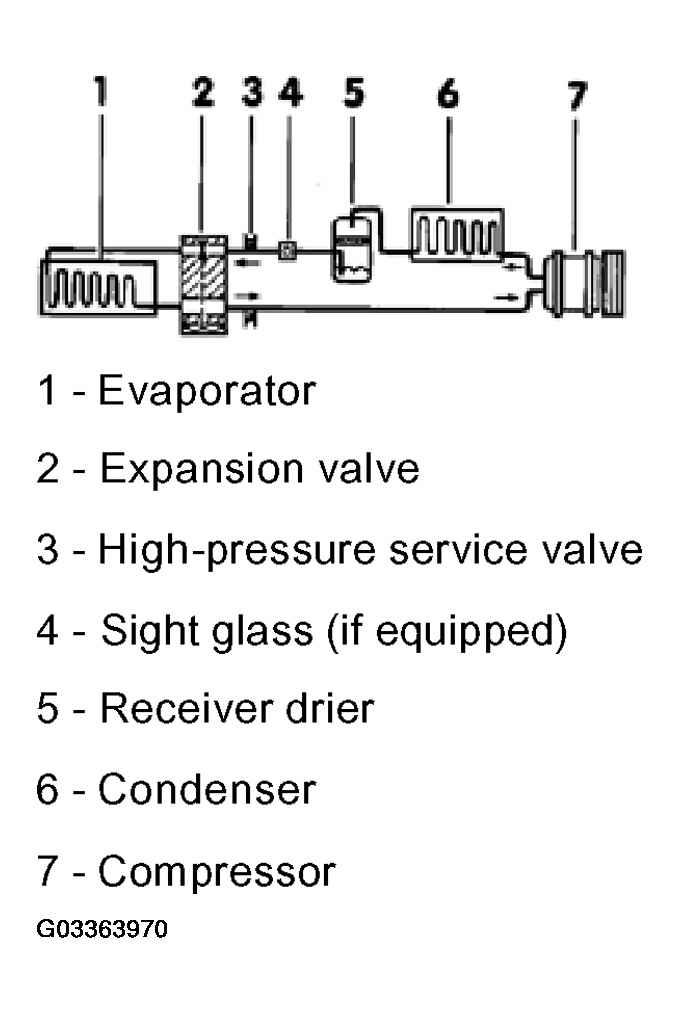

    Fig 1: Identifying Components Of Refrigerant Circuit
    G03363970Courtesy of VOLKSWAGEN OF AMERICA, INC.
